Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: CE,BV,ISO
Model Number: JJM8Q
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Application: |
Construction |
Capacity: |
80KN |
Power: |
GX390 13HP |
Engine: |
HONDA Gasoline |
Dimension: |
1000*550*500mm |
Package: |
Wooden Case |
Application: |
Construction |
Capacity: |
80KN |
Power: |
GX390 13HP |
Engine: |
HONDA Gasoline |
Dimension: |
1000*550*500mm |
Package: |
Wooden Case |

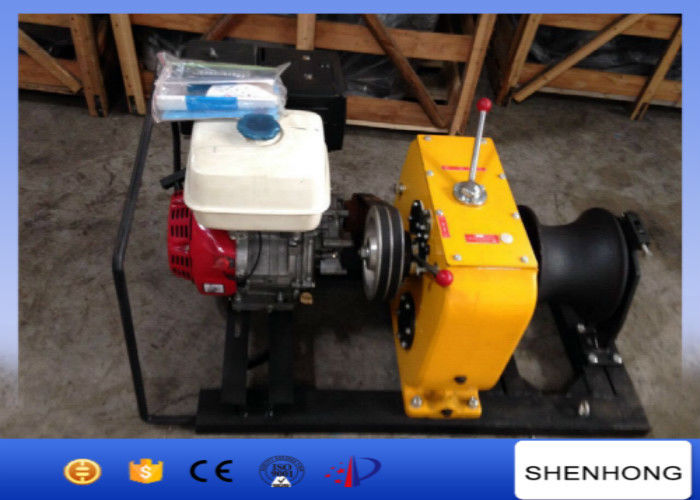

8 Ton HONDA gasoline powered cable pulling/ hoisting winch by belt driven
Application
Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.It is suitable for field, mountain construction.And it is flexible due to small and light.
Features
Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.
Light weight.
High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.
Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.
Widely used.
Technical data of 8 Ton HONDA gasoline powered cable pulling/ hoisting winch by belt driven
Model | Engine | Gear | Pull Force(KN) | Speed(m/min) | Weight(Kg) |
JJM-8Q | HONDA | Slow | 80 | 4 | 180 |
Fast | 40 | 8 | |||
Reverse | No lifting | 3.8 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
