60KN Hydraulic Cable Puller For Transmission Overhead Line

Product Details

Place of Origin: Jiangsu,China

Brand Name: Shenhong

Certification: ISO

Model Number: GS-60

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: get lastest price

Packaging Details: standard export packing

Delivery Time: 15-30 work days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5 Set/Sets per Month

Get Best Price
High Light:

60KN Hydraulic Cable Puller

,

Transmission Overhead Line Hydraulic Cable Puller

,

Transmission Overhead Line Stringing Equipment

Max Linepull:
60KN
Continous Line:
50KN
Maximum Pulling Speed (km/h):
5
Bullwheel Bottom Of Groove Diameter (mm):
450
Number Of Bullwheel Grooves:
7
Engine Power / Speed (kW/rpm):
77(103)
Max Linepull:
60KN
Continous Line:
50KN
Maximum Pulling Speed (km/h):
5
Bullwheel Bottom Of Groove Diameter (mm):
450
Number Of Bullwheel Grooves:
7
Engine Power / Speed (kW/rpm):
77(103)
60KN Hydraulic Cable Puller For Transmission Overhead Line

60KN Stringing Equipment Hydraulic Cable puller Machine For Transmission Overhead Line



Products Description

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.


FEATURES AT A GLANCE
* Hydraulic dynamometer with set-point and automatic control of maximum pull.
* Hydraulic oil cooling system
* Control instruments for hydraulic system and diesel engine.
* On board reel winder with automatic level wind, suitable for standard reel mod.1400
* Hydraulic front stabilizer
* Grounding connection point


PRODUCT SPECIFICATIONS



Main configuration

* Engine: Cummins
* Main pump: German Rexroth
* Main motor speed reducer: German Rexroth
* Tail bracket hoisting motor: America Eton
* Hydraulic meter: German WIKA
* Operating handle: German Rexroth



Model



GS 40

GS 60

GS 90

GS 180

GS 220

GS 280

GS380

Max intermittent pull

KN

40

60

90

180

220

280

380

Max continuous pull

KN

30

50

80

150

180

250

350

Speed at max pull

km/h

2.5

2.5

2.5

2.5

2.5

2.5

2.5

Max speed

km/h

5

5

5

5

5

5

5

Pull at max speed

KN

20

25

40

75

90

120

170

Diesel

kw(hp)

77(103)

77(103)

118(158)

239(320)

239(320)

298(400)

440(590)

Cooling system



Water

Water

Water

Water

Water

Water

Water

Electrical system

V

24

24

24

24

24

24

24

Bull-wheel diamete

mm

400

450

540

700

760

960

960

Groove number



7

7

8

10

10

11

11

Max rope diameter

mm

16

18

21

27

30

38

38

Max diameter of rope reel

mm

1200

1400

1400

1400

1600

1600

1900

Total weight

kg

3000

3500

4680

6800

6800

12800

13600

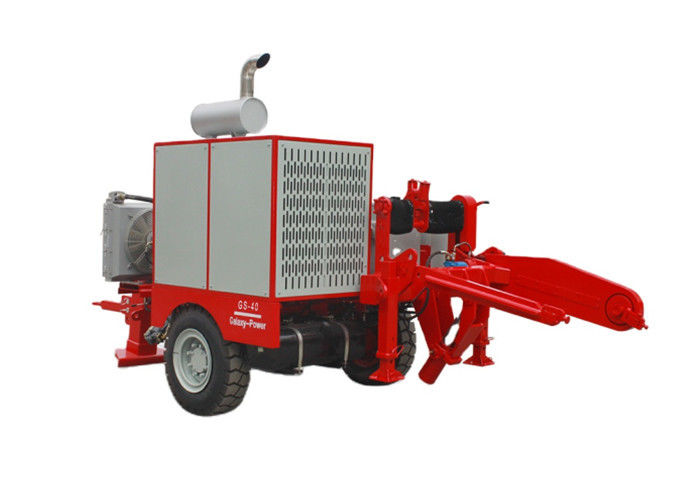

60KN Hydraulic Cable Puller For Transmission Overhead Line 0
