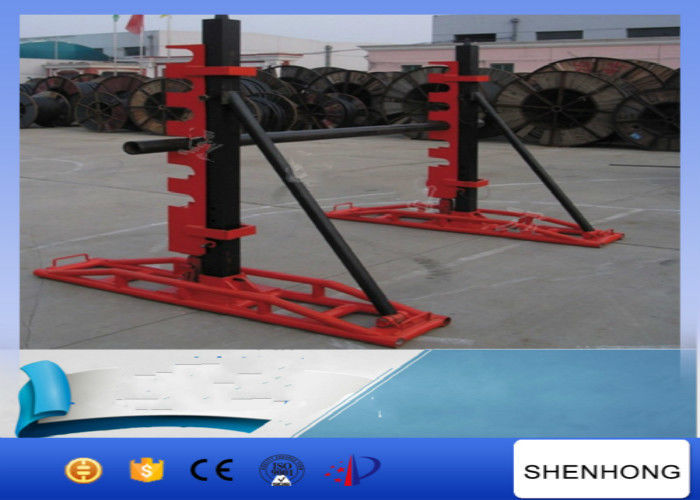

1900MM Width 10T Cable Drum Jacks Durable Hydraulic Reel Elevators

China 1900MM Width 10T Cable Drum Jacks Durable Hydraulic Reel Elevators supplier
1900MM Width 10T Cable Drum Jacks Durable Hydraulic Reel Elevators supplier 1900MM Width 10T Cable Drum Jacks Durable Hydraulic Reel Elevators supplier

Large Image :  1900MM Width 10T Cable Drum Jacks Durable Hydraulic Reel Elevators

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SI-10A

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: export standard package
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Product Name: 10T Cable Drum Jacks Hydraulic Reel Elevators For Supporting Reel Drum Max Load Capacity: 10T
Weight: 286kg Warranty: 1 Year
Type: Hydraulic Reel Elevators Drum Width: ≤1900mm

1900MM Width 10T Cable Drum Jacks Durable Hydraulic Reel Elevators ​


Product Description

Cable reel stand is a compact solution for spooling heavy drums of power and data cable or conveyor belts. The system comprises of two independent cable stands complete with hydraulic bottle jacks and a high tensile spindle secured in the V block.With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.



Application

It is applicable to the placement of the cable tray, with hydraulic lifting.



Advantage

1. applicable to be as the support of large cable reel in laying cables in the city

2. easy to move with the trundles in the bottom

3. can be equipped with a braking device, using the foot brake



Data Sheet

Item number Model Applicable drum Weight (kg)
Root diameter (mm) Drum width (mm) Reel diameter (mm) Weight (t)
21346 SI-5 Φ1250~2400 ≤1600 Φ76~103 ≤ 5 183
21347 SI-10 Φ1250~2700 ≤1600 Φ120~135 ≤10 250
21348 SI-10A Φ1250~3400 ≤1900 Φ120~135 ≤10

286

Uses :to support reel drum .

Feature :hydraulic jacked ,load big weight ,footing installed small roller and move easily.
