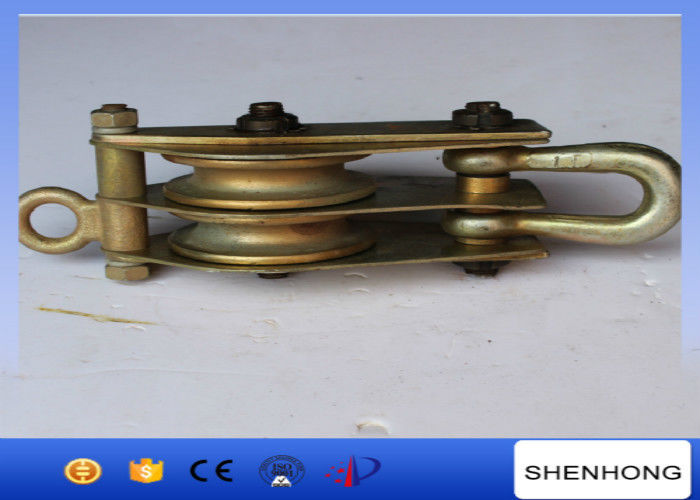

Cable Pulling Tower Erection Tools 1T 3T 8T Single Sheave Loop Type Lifting Pulleys

China Cable Pulling Tower Erection Tools 1T 3T 8T Single Sheave Loop Type Lifting Pulleys supplier
Cable Pulling Tower Erection Tools 1T 3T 8T Single Sheave Loop Type Lifting Pulleys supplier Cable Pulling Tower Erection Tools 1T 3T 8T Single Sheave Loop Type Lifting Pulleys supplier

Large Image :  Cable Pulling Tower Erection Tools 1T 3T 8T Single Sheave Loop Type Lifting Pulleys

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: LZH

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Contact Now
Detailed Product Description
Sheave Number: 1 Usage: Hoisting
Application: Power Condtruction Material: Steel
Type: Hook Type Or Round Eye Type Side Open: Yes

Cable Pulling Tower Erection Tools 1T 3T 8T Single Sheave Loop Type Lifting Pulleys ​





Application

Aluminum Alloy Wire Rope Lifting Pulley is used for lifting.It can be used in single, it also can be used as a block.



Characteristics

1. Material: Aluminum alloy

2. The type of Single wheel is open hook type.

3. The type of double wheel or third wheel is closed loop type.

3. It is made of aluminum alloy

4. Light weight



Technical Data

Model Number of sheaves Rated load (kN) Outside diameter×width(mm) Weight (kg) Hoisting point type
QH1GN-1K 1 10 Φ100×31 1.8 G H
QHN1-2 2 10 Φ80×27 1.8 G H
QHN1-3 3 10 Φ80×27 2.1 G H
QHN2-1K 1 20 Φ120×35 2.2 G H B
QHN2-2 2 20 Φ100×31 2.6 G H
QHN2-3 3 20 Φ100×31 3.7 G H
QHN3-1 1 30 Φ150×39 3.4 G H B
QHN3-2 2 30 Φ120×35 4.5 G H
QHN3-3 3 30 Φ100×31 4.6 G H
QHN5-1K 1 50 Φ166×40 5.2 G H B
QHN5-2 2 50 Φ150×39 5.5 G H
QHN5-3 3 50 Φ120×35 5.1 G H
QHN8-1K 1 80 Φ205×49 7.2 G H B
QHN8-2 2 80 Φ166×40 8.3 G H
QHN8-3 3 80 Φ150×39 7.9 G H
QHN10-1K 1 100 Φ246×60 11.4 G   B
QHN10-2 2 100 Φ166×40 10.2   H
QHN10-3 3 100 Φ150×39 11.7   H
QHN15-1K 1 150 Φ280×65 12.1     B
QHN15-2 2 150 Φ205×49 12.8   H
QHN15-3 3 150 Φ166×40 11.8   H
QHN15-4 4 150 Φ150×39 13.9   H







Cable Pulling Tower Erection Tools 1T 3T 8T Single Sheave Loop Type Lifting Pulleys
