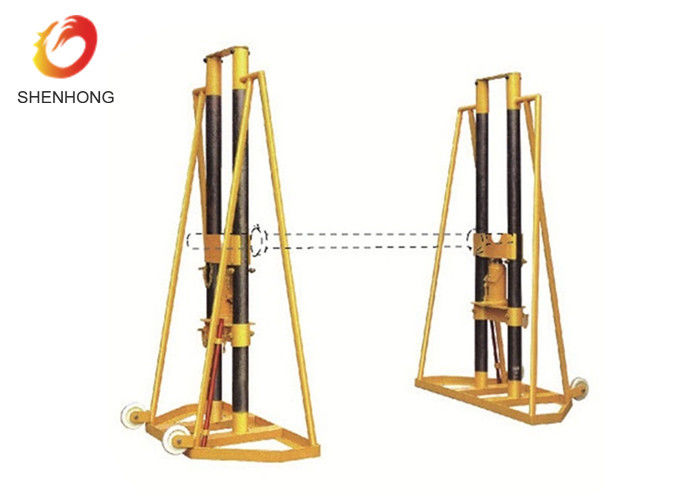

10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables

China 10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables supplier
10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables supplier 10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables supplier

Large Image :  10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: DL013

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: export standard package
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Contact Now
Detailed Product Description
Product Name: 10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand Applicable Drum Diameter: ≦2700mm
Max Load Capacity: 10T Warranty: 1 Year
Type: Cable Drum Jacks Application: Releasing Cables

10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand for Releasing Cables



Application

Hydraulic Cable Drum Jacks,/Cable Jack Stand is applicable to the placement of the cable tray, with hydraulic lifting.



Features

It is applicable to be as the support of large cable reel in laying cables in the city.

It is easy to move with the trundles in the bottom.

It can be equipped with a braking device, using the foot brake.



Technical Data

Model
Rated Load
Applicable wire dics
Disc Weight
Weight
SI-5
50KN
≤2400
≤5T
80KGS
SI-10
100KN
≤2700
≤10T
100KGS
SI-15
150KN
≤3600
≤15T
122KGS
SI-20
200KN
≤4000
≤20T
145KGS
SI-30
300KN
≤4000
≤30T
280KGS



Practical Application

10 Ton Hydraulic Cable Drum Jacks Cable Jack Stand For Releasing Cables
