Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SA-YQ40
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: 20GP container
Delivery Time: 60 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/month
Product Name: |
SA-YQ40 Hydraulic Puller |
Maximum Linepull (kN): |
40 |
Continuous Linepull (kN): |
35 |
Maximum Linespeed (km/h): |
5 |
Bullwheel Grooves Number: |
7 |
Bullwheel Bottom Of Groove Diameter(mm): |
400 |
Product Name: |
SA-YQ40 Hydraulic Puller |
Maximum Linepull (kN): |
40 |
Continuous Linepull (kN): |
35 |
Maximum Linespeed (km/h): |
5 |
Bullwheel Grooves Number: |
7 |
Bullwheel Bottom Of Groove Diameter(mm): |
400 |

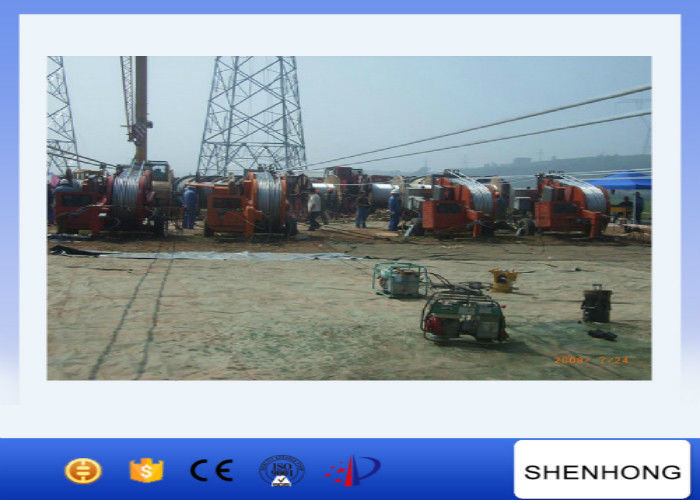

Rexroth Valve Hydraulic Puller Tensioner With Hydraulic Oil Cooling System
Our SA-YQ40 Hydraulic Puller has an overload automatic protection function. The maximum traction force for conductor stringing operation is able to be preset. Another function is the automatic action of spring applied hydraulically released brake. Owing to it, our product is safe to be operated, in case that the motor suddenly turns off, or other reasons cause the hydraulic failure.
In use of this SA-YQ40 Hydraulic Puller, both pulling speed and traction force are steplessly adjustable. The pull in the rope can be clearly displayed on the line pull gauge. Moreover, our product employs the steel wire rope automatically winding device, for automatic rope arrangement as well as easy loading and unloading.
Main Specifications
Model | SA-YQ40 Hydraulic Puller |
Maximum Traction Force (kN) | 40 |
Continuous Tractive Effort (kN) | 35 |
Maximum Pulling Speed (km/h) | 5 |
Bullwheel Bottom of Groove Diameter (mm) | Φ400 |
Number of Bullwheel Grooves | 7 |
Maximum Diameter of Suitable Steel Rope (mm) | Φ16 |
Maximum Through Connector Diameter (mm) | Φ50 |
Engine Power / Speed (kW/rpm) | 60/2000 |
Dimensions (mm) | 3500× 2000× 2300 |
Weight (kg) | 2500 |
Main Components
Engine | Cummins (DONGFENG ) water cooled engine |
Main Variable Pump and Main Motor | Rexroth (BOSCH) |
Reducer | RR (Italian) |
Main Hydraulic Valve | Rexroth (BOSCH) |
Radiator | AKG |
Hydraulic Instrument | |
Suitable Drum | Model GSP1400 (Item number: 07125C) |
Features:
- With closed hydraulic circuit and variable displacement plunger pump, the pulling force could be step less controlled.
- The max pulling force for stringing operation can be preset.
- Automatic over pulling protection system
- With the radiator imported from Germany, the machine has good heat dissipate performance.
- With a negative spring applied hydraulic released brake, and automatic overload protection.
- With hydraulic oil cooling system.
- Heat treated wear-proof bullwheels
- With rigid axle for towing at high speed, the machine looks beautiful.
- Integral self-loading reel winder with automatic level wind.
- Heavy duty R-tires with excellent shock-absorbing performance.
