60KN Pulling Force Hydraulic Puller Tensioner Fully Hydraulic Controlled 3.8X2.1X2.3 M

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SHENGHONG

Certification: ISO

Model Number: SA-YQ60

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: negotiation

Packaging Details: 20GP container

Delivery Time: 40 days after deposit

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10sets/month

Get Best Price
High Light:

hydraulic tensioner

,

conductor stringing equipment

Product Name:
Overhead Power Line Stringing Equipment SA-YQ60 Hydraulic Puller
Maximum Linepull (kN):
60
Continuous Linepull (kN):
50
Maximum Linespeed (km/h):
5
Weight (kg):
3000
Dimension (m):
3.80 X 2.10 X 2.30
Product Name:
Overhead Power Line Stringing Equipment SA-YQ60 Hydraulic Puller
Maximum Linepull (kN):
60
Continuous Linepull (kN):
50
Maximum Linespeed (km/h):
5
Weight (kg):
3000
Dimension (m):
3.80 X 2.10 X 2.30
60KN Pulling Force Hydraulic Puller Tensioner Fully Hydraulic Controlled 3.8X2.1X2.3 M

60KN Pulling Force Hydraulic Puller Tensioner Fully Hydraulic Controlled 3.8X2.1X2.3 M





110KV transmission line stringing equipments are used for overhead 110KV transmission line single or bundled cnductors stringing operation. We normally used 6 ton hydraulic puller with 4 ton hydraulic tensioner for single 500-630 mm2 conductor, or two of 3 ton hydraulic tensioner for 2 bundled conductors in 110KV transmission line.

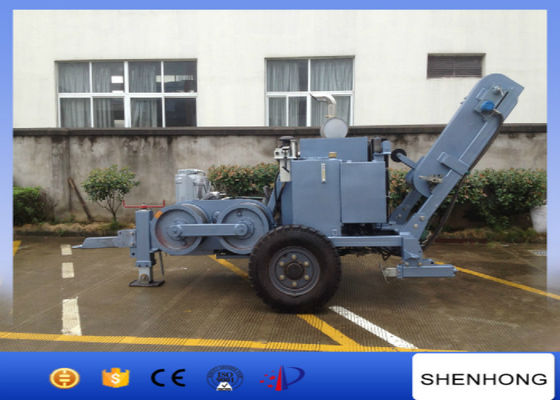

SA-YQ60 Hydraulic Puller

Item No. 07031
Model SA-YQ60
Max. Pulling Force (KN) 60
Continuous Pulling Force (KN) 50
Max. Pulling Speed (m/min) 5km/h
Pulling force at max. speed: 25 KN
Root Diameter of Bull wheel (mm) Φ460
Number of grooves 7
Max. Steel rope Diameter (mm) Φ18
Model of Diesel Engine Water cooled diesel engine
Power of Diesel Engine 77 KW
Rotate Speed of Engine (rpm) 2800
Electrical System DC24V
Weight (kg) 3000
Dimension (m) 3.80 x 2.10 x 2.30

Application:

The hydraulic puller is used to pull pilot steel wire rope for conductors stringing. It is fully hydraulic controlled, easily used and maintained



Features:

- Closed hydraulic circuit,infinitely variable speed control in both rotating directions.

- The max pulling force for stringing operation can be preset, pulling force in the rope can be read on the line pull gauge.

- Automatic over pulling protection system

- Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.

- Hydraulic oil cooling system.

- Heat treated wear-proof bull wheels

- With rigid axle for towing at high speed, the machine looks beautiful.

- Integral self-loading reel winder with automatic level wind.

- Mounted on trailer with rigid axle for towing at max. speed of 15 km/h on work site.



Main Components:

- Engine: Cummins water-cooled diesel engine.

- Main variable displacement hydraulic pump and main motor: Rexroth (German)

- Reducer: R.R. (Italian)

- Reel winder motor: Danfoss (Danish)

- Main hydraulic valves: Rexroth (German)

- Hydraulic instruments: (German)

- Radiator: AKG (German)
