1200MM Tension Wheel Hydraulic Puller Tensioner For Driving Hydraulic Reel Stand

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SHENHONG

Certification: ISO

Model Number: SA-YQZ40D

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD17000-2000

Packaging Details: 20" container

Delivery Time: 30 workdays after deposit

Payment Terms: L/C, T/T, Western Union

Get Best Price
High Light:

hydraulic tensioner

,

conductor stringing equipment

Type:
Hydraulic Puller Tensioner
Load Capacity:
40KN
Overall Size:
3.60 X 1.85 X 2.40M
Diameter Of Tension Wheel:
1200mm
Max Pulling Speed(km/h):
5 Km/h
Max Dia Of Wire:
32mm
Max Tension:
40KN
Application:
Stringing During Overhead Line Tranmission
Type:
Hydraulic Puller Tensioner
Load Capacity:
40KN
Overall Size:
3.60 X 1.85 X 2.40M
Diameter Of Tension Wheel:
1200mm
Max Pulling Speed(km/h):
5 Km/h
Max Dia Of Wire:
32mm
Max Tension:
40KN
Application:
Stringing During Overhead Line Tranmission

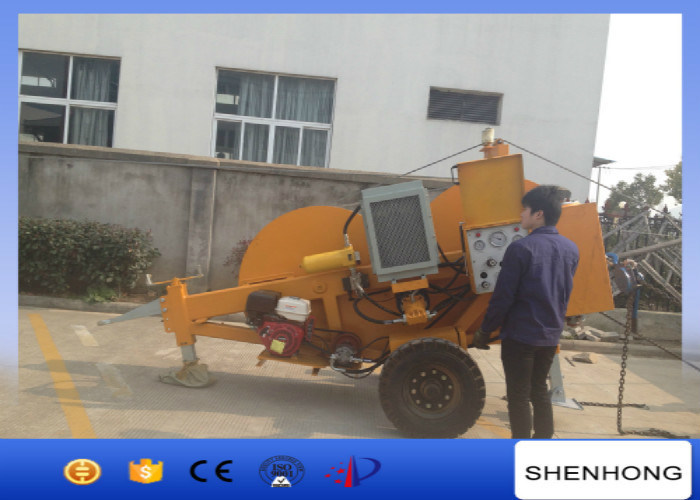

1200MM Tension Wheel Hydraulic Puller Tensioner For Driving Hydraulic Reel Stand

1200MM Tension Wheel Hydraulic Puller Tensioner For Driving Hydraulic Reel Stand​





SA-YQZ40D Hydraulic Puller-Tensioner is suitable for stringing or exchanging single conductor or OPGW and steel wire rope in overhead transmission line. It is equipped big water cooled diesel engine, and strong hydraulic motor for both pulling and tension operation.


Item No. 07224
Model SA-YQZ40D
Max. Pulling / Tension Force (KN) 40 / 40
Continuous Pulling / Tension Force (KN) 35 / 35
Max. Stringing Speed(km/h) 5 / 5
Diameter of wheel (mm) Φ1200
Number of grooves 5
Max. Conductor Diameter (mm) Φ32
Model of Engine Cummins water cooled
Power of Engine 60 KW
Rotate Speed of Engine (rpm) 2000
Electrical system: DC12V
Weight (kg) 3200
Dimension (m) 3.60 x 1.85 x 2.40

Application:

It is suitable for stringing single conductor or OPGW and steel wire rope in overhead transmission line. It is ideal equipment for exchanging project on existing transmission line (for exchange OPGW or conductor project).



Features:

1. Closed hydraulic circuit, infinitely variable pull/tension control in both rotating directions;

2. The max. tension / pull force for conductor stringing operation can be preset, and the pull / tension force in the conductor can be read on the pull / tension gauge;

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety concern;

4. Hydraulic oil cooling system;

5. Bull wheels are lined with wear proof MC nylon segments;

6. With hydraulic oil output for driving hydraulic reel stand

7. Mounted on trailer with rigid axle for towing at max. speed of 15 km/h.



Main components:

- Engine: Cummins water cooled diesel engine.

- Main variable displacement pump and main motor: Rexroth (German)

- Reducer: R.R. (Italian)

- Main hydraulic valves: Rexroth (German)

- Hydraulic Instrument: (German)

- Quick couplings: EMB (German)

- Radiator: AKG (German)
