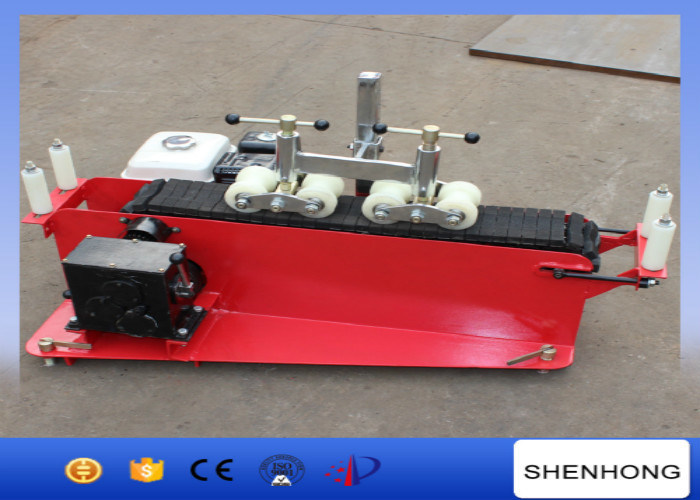

DQJ-110 500KG Cable Pulling Winch Machine With Honda Gasoline Engine

DQJ-110 500KG Cable Pulling Winch Machine With Honda Gasoline Engine
DQJ-110 500KG Cable Pulling Winch Machine With Honda Gasoline Engine DQJ-110 500KG Cable Pulling Winch Machine With Honda Gasoline Engine

Large Image :  DQJ-110 500KG Cable Pulling Winch Machine With Honda Gasoline Engine Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: DQJ-110
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD1200-2000
Packaging Details: carton
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Type: Cable Pulling Winch Engine: HONDA Gasoline Engine
Power: 5.5HP Suitable Cable Diameter: Φ30 - 110 Mm
Pulling Force: 500kg Pulling Speed: Max 25m/min
High Light:

electrical wire pulling tools

,

wire pulling tools

DQJ-110 500KG Cable Pulling Winch Machine With Honda Gasoline Engine​





Application

It is applicable to cablecasting ,especially long distance cablecasting.

It can work without power supply,save labor and time.



Characteristic

1. It can reduce the tension of traction device in the cable wiring.

2. With reinforced steel bottom structure.

3. With high strength nylon track.

4. With apair of nylon pulleyto protect the cable.

5. light weight;strong push force; small volume



Technical Data

Model NO. Push speed(m/min) Range(mm) Push Force(kg) Demension(mm) Weight(kg)
DQJ-110 25 Ø30-Ø110 500 1050*250*360 100



Details

DQJ-110 500KG Cable Pulling Winch Machine With Honda Gasoline Engine 0
