Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: export standard package
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Product Name: |
5 Ton Integratd Cable Reel Stand Cable Drum Jacks With Disc Tension Brake |
Rated Load: |
5T |
Type: |
Cable Drum Jacks |
Application: |
Supporting Cable Reel When Laying Guiding Cable |
Item: |
Cable Reel Jack |
Usage: |
Cable Reel Stringing |
Product Name: |
5 Ton Integratd Cable Reel Stand Cable Drum Jacks With Disc Tension Brake |
Rated Load: |
5T |
Type: |
Cable Drum Jacks |
Application: |
Supporting Cable Reel When Laying Guiding Cable |
Item: |
Cable Reel Jack |
Usage: |
Cable Reel Stringing |

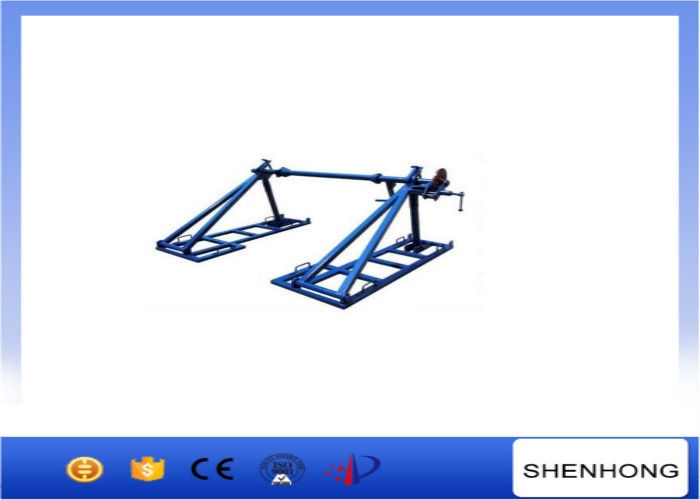

5 Ton Integratd Cable Reel Jack Stands Spooling Heavy Drums With Disc Tension Brake
Introduction
Cable reel stand is a compact solution for spooling heavy drums of power and data cable or conveyor belts.
The system comprises of two independent cable stands complete with hydraulic bottle jacks and a high tensile spindle secured in the V block.
With trapezoidal structure, it can be applied in different kinds of reel specification.
Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Application
Applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
Features
1. easy to carry
2. high quality
3. quick delivery
Advantages
1. applicable to be as the support of large cable reel in laying cables in the city
2. easy to move with the trundles in the bottom
3. can be equipped with a braking device, using the foot brake
Data Sheet
| Model | Rated Load(T) | Applicable Drum Diameter(mm) | Applicable Drum Width(mm) | Axle Bar Diameter(mm) | Dead Weight(kg) |
| DL017-3 | 3 | 1400-2100 | ≤1200 | 60 | 120 |
| DL017-5 | 5 | 1600-2000 | ≤1200 | 76 | 180 |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
