Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms
Minimum Order Quantity: 1 pair
Price: negotiation
Packaging Details: export standard package
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Product Name: |
Cable Drum Jacks |
Rated Load: |
5T |
Applicable: |
Cable Drum Stringing |
Applicable Drum Width: |
≤1800mm |
Axis Bar Diameter: |
120mm |
Type: |
Disc Tension Brake |
Product Name: |
Cable Drum Jacks |
Rated Load: |
5T |
Applicable: |
Cable Drum Stringing |
Applicable Drum Width: |
≤1800mm |
Axis Bar Diameter: |
120mm |
Type: |
Disc Tension Brake |

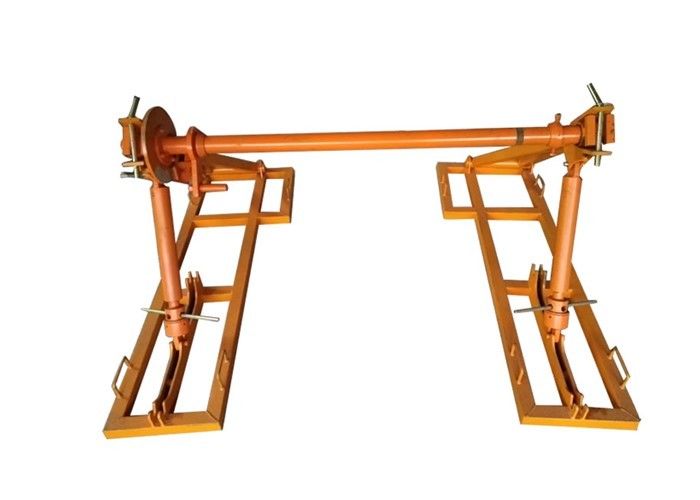

Disc tension brake integrated cable reel drum stand for supporting reel
Applications:
Disc tension brake integrated cable reel drum stand for supporting reel is used to support reel in tension releasing wire or mechanically linepulling wire or machanically linepulling wire and to brake the reel.It is convenient transportation because it can be disassembled into 3 pieces.
Data sheet
| Model | SIPZ3A | SIPZ5A | SIPZ-7 | |
| Applicable reel | Diameter of coil(mm) | φ900-1600 | φ1600-2400 | φ1800-2500 |
| Width of coil(mm) | ≤1350 | ≤1350 | ≤1700 | |
| Diameter of axle hole(mm) | φ65-100 | φ65-100 | φ120 | |
| Maxmium weight(kg) | 3000 | 5000 | 7000 | |
| Brake torque(N.m) | 1000 | 1000 | 2000 | |
| Line speed(m/min) | 80 | 80 | 80 | |
| Weight(kg) | 200 | 215 | 480 | |
