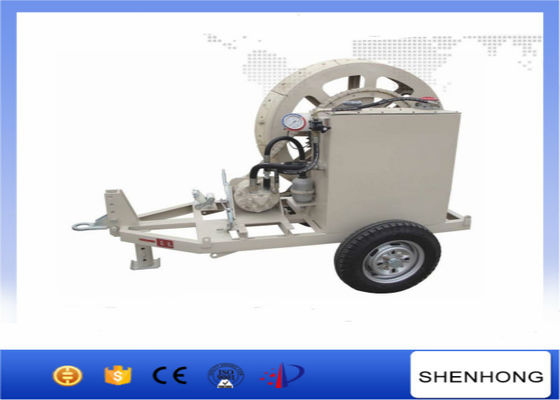

Winch Type Puller Tensioner / Brake Tensioner SA-YZ7.5 for Stringing OPGW

large.img.alt
small.img.alt small.img.alt

Large Image :  Winch Type Puller Tensioner / Brake Tensioner SA-YZ7.5 for Stringing OPGW Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SA-YZ7.5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: 20GP container
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/month
Detailed Product Description
Product Name: SA-YZ7.5 Winch Type Hydraulic Brake Tensioner For Stringing OPGW Max Tension(KN): 7.5
Max Velocity(m/min): 40 Diameter Of Tension Wheel(mm): 1100
Overall Size(mm): 2300*1250*1620 Weight(kg): 450
High Light:

hydraulic pulling machine

,

hydraulic tensioner

Winch Type Puller Tensioner / Brake Tensioner SA-YZ7.5 for Stringing OPGW





Essential parameter

Model Type SA-YZ7.5
Overall Size(mm) 2300*1250*1620
Weight(kg) 450
Max Tension(KN) 7.5
Rated Tension(KN) 5
Max Velocity(m/min) 40
Diameter of Tension wheel(mm) Φ1100
Applicable Conductor Wire ≤ LJ-240
≤ LJ-185/10
Suitable Hydraulic Oil Type No.46 Antiwear Hydraulic Oil
Max Oil Temperature(°C) 70
Rated Working Pressure(MPa) 25



Uses

It is used for stringing various conductors and earth wires.



·Feature :

1. Adopt retarding with hydraulic pressure.

2. Light and convenient for line construction in mountainous area.
