Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: ISO
Model Number: QY
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Max Compression Force (kN): |
1250 |
Rated Pressure (kN): |
70,94 |
Max Stroke (mm): |
25 |
Conductor Size (mm): |
240-1440 |
Weight (kg): |
12-85 |
Dies: |
Steel,Aluminum,Copper |
Max Compression Force (kN): |
1250 |
Rated Pressure (kN): |
70,94 |
Max Stroke (mm): |
25 |
Conductor Size (mm): |
240-1440 |
Weight (kg): |
12-85 |
Dies: |
Steel,Aluminum,Copper |

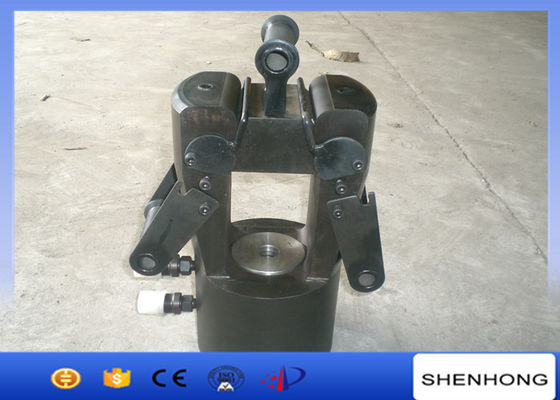

Overhead Line Construction Tools 125T Hydraulic Crimping Head Hydraulic Compressor Double Acting
Characteristic
The hydraulic compressors, mainly implemented in press forged steel, have the following characteristics:
Excellent weight/power ratio;
Very short pressing cycle (all the presses have an hydraulically-driven piston release);
Each power unit or manual hydraulic pump (and hoses) is interchangeable with any hydraulic press
Features:
1. Operated by any double-acting hydraulic pump with rated oil pressure of 700 bar (10,000 psi)
2. Functional handles for easy carrying and repositioning
3. Removable die cap for easy connector positioning
4. Ram retracts hydraulically; the ram retracting time is 1/3 of spring return
5. Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work
Technical Data
| For compressor, QY-35 work with hand pump or Single-tube electric pump; QY-65, QY-125, QY-200 work with hydraulic pump. | |||||
| Model | Max compression force (kN) | Rated pressure (kN) | Conductor size (mm) | Max stroke (mm) | Weight (kg) |
| QY-35 | 350 | 70 | ≤240 | 25 | 12 |
| QY-65 | 650 | 94 | ≤500 | 25 | 25 |
| QY-125 | 1250 | 94 | ≤720 | 25 | 40 |
| QY-200 | 2000 | 94 | ≤1440 | 25 | 85 |
| For Die | ||||
| Model | Compressor model | Aluminum Dies | Steel Dies | Copper Dies |
| QYD-35 | QY-35 | 16/18/20/22/24/26/30/32/34/36 | 16~500mm2 | |
| QYD-65 | QY-65 | 26/28/30/32/34/36/38/40/45/50 | 12/14/16/18/20/22/24/26 | 16~800mm2 |
| QYD-125 | QY-125 | 26/28/30/32/34/36/38/40/45/50/52/55/60 | 12/14/16/18/20/22/24/26 | 16~800mm2 |
| QYD-200 | QY-200 |
26/28/30/32/34/36/38/40/45/50/52 |
12/14/16/18/20/22/24/26/28/ |
16~800mm2 |
Hydraulic Pump Technical Data
| Model | Engine | Power | Rated Pressure(Mpa) | Max Pressure(Mpa) | Rated Flow(L/min) | Weight | |
| High Pressure | Low Pressure | ||||||
| YA-80-03 | Honda GX160 | 5.5HP | 80 | 94 | 2.05 | 11.02 | 56KG |
| YA-80-03 | Diesel Engine | 4.0HP | 80 | 94 | 2.05 | 11.02 | 65KG |
| YA-80-03 | Electric Engine | 3.0KW | 80 | 94 | 1.60 | 8.00 | 45KG |
1. Founded in 2015, SUZHOU SHENHONG ELECTRIC TOOLS IMPORT AND EXPORT CO.,LTD.
2. Although we are young company,we have our own factory(Changshu Xinya Machinery Manufacturing Co., Ltd.)which was founded in 1983.
3. We have already sell cabe pulling tools to Pakistan, India, Mexico, Turkey, Peru,Brazil,Vietnam,Thailand,Saudi Arabia,Malaysia,Kenya and etc.
