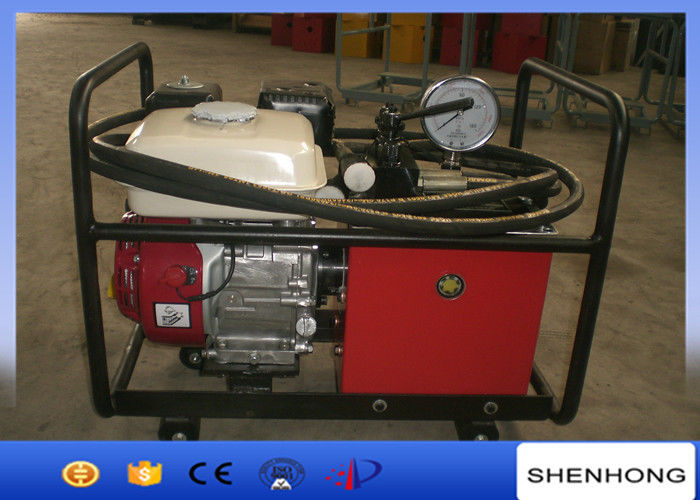

Honda Gasoline Engine Gas Powered Hydraulic Pump For Onerhead Line Construction Machinery

Product Details

Place of Origin: Jiangsu, China

Brand Name: SHENHONG

Certification: ISO

Model Number: JYB-80

Payment & Shipping Terms

Minimum Order Quantity: 2sets

Price: negotiation

Packaging Details: Standard export wooden case

Delivery Time: 7 days after payment

Payment Terms: L/C, T/T

Supply Ability: 1000sets per month

Get Best Price
Highlight:

electrical wire pulling tools

,

wire rope tensioner tool

Engine:
Honda Gasoline Engine
Type:
Hydraulic Pump
Ueses:
Provide Power For Cutting Tools, Hydraulic Compressor
Weight(kg):
60
Tank Volume(L):
8
Rated Flow(L/min):
1.4
Rotate Speed(r/min):
1500
Rated Pressure(Mpa):
80
Engine:
Honda Gasoline Engine
Type:
Hydraulic Pump
Ueses:
Provide Power For Cutting Tools, Hydraulic Compressor
Weight(kg):
60
Tank Volume(L):
8
Rated Flow(L/min):
1.4
Rotate Speed(r/min):
1500
Rated Pressure(Mpa):
80
Honda Gasoline Engine Gas Powered Hydraulic Pump For Onerhead Line Construction Machinery

Honda Gasoline Engine Gas Powered Hydraulic Pump For Onerhead Line Construction Machinery​





Application

Honda Gasoline Hydraulic Pump is used to provide power for the cutting tool,the hydraulic compressor,punching machine and other construction machinery,which is operated in the wild field in electric power,railway,rescue,construction and other industries.



Features

1. Easy to operate and high safety

2. Precise Machining Technique

3. Long Life

4. Broader Applicable Scope

5. Good Quality and Less Malfunction



Technical Data

Model
Type
Rated
Pressure(Mpa)
Rotate
Speed(r/min)
Rated
Flow(L/min)
Tank
Volume(L)
Weight(kg)
JYB-80 80 1500 1.4 8 60



Oil Hose standard length: 2.5 m/pc * 2pcs



Note:

Length of oil hose can be made as per your requirement.



Hydraulic compression head HP-100W:

  • Output pressure:100 tons
  • Rated working pressure:80MPa;
  • Stroke:22mm
  • Weight:33kgs

Hydraulic compression head HP-200W:

  • Output pressure:200 tons
  • Rated working pressure:80MPa;
  • Stroke:40mm
  • Weight:90kgs

Hydraulic compression head HJC125:

  • Max output pressure:125 tons;
  • Rated working pressure:80MPa;
  • Stroke:25mm;
  • Weight:40Kg;

Hydraulic compression head HJC200:

  • Max output:200 tons;

  • Rated working pressure:80MPa;

  • Stroke: 25mm;

  • Weight:86Kg
