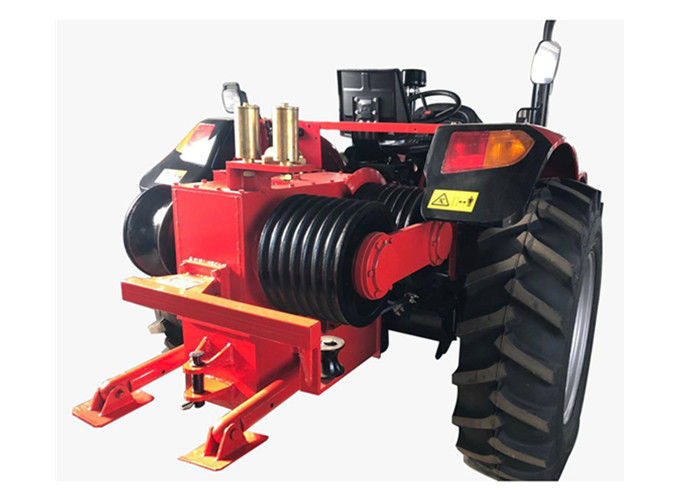

Self Propelled 120KN Cable Pulling Machine For Power Construction

Self Propelled 120KN Cable Pulling Machine For Power Construction
Self Propelled 120KN Cable Pulling Machine For Power Construction Self Propelled 120KN Cable Pulling Machine For Power Construction

Large Image :  Self Propelled 120KN Cable Pulling Machine For Power Construction Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SX4-Ⅵ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: export package
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2 sest/month
Detailed Product Description
Model: TY-120 Drum Groove Bottom Diameter: 395mm
Maximum Applicable Diameter Of Wire Rope: 26mm Dimensions: 4300×2200×2500mm
Usage: Power Construction Warranty: 1 Year
High Light:

120KN Cable Pulling Machine

,

Power Construction Cable Pulling Machine

,

2300r/min Self Propelled Tractor

120KN Cable Pulling Machine Self Propelled Tractor Puller Winch



Application:

The self-propelled tractor winch is refitted on the basis of wheeled tractor. It has the functions of traction wire, tightening wire, erection pole, erection tower, drag and drop cable and lifting objects. It is suitable for 220kV and below transmission line construction, and also suitable for power cable laying construction.



Features:

1. It adds travel and traction switch fork. When walking, the fork is put into the travel gear, and the machine can run by itself. When traction, the fork is put into the traction gear, which cuts off the driving power, and can carry out the traction operation, so as to avoid the hidden danger caused by the rotation of the traction mechanism when driving.

2. A gravity self-made brake device (the sound of "Da da da" can be heard during operation) is set in the traction transmission box. The device can automatically control the sliding and falling phenomenon caused by gravity in forward and reverse operation, so as to ensure the safety and reliability in the construction process.

The cable pulling machine is made of Taishan 250 / 280 / 300 tractor.



Data Sheet

Item Product model TY-120
Performance parameters Gear Rated traction force Max. traction force Rated traction speed
Low speed gear I 100kN 120kN 12.3m/min
II 87.5kN 105kN 20.9m/min
III 75kN 90kN 28m/min
IV 62.5kN 75kN 33.8m/min
Medium speed gear I 50kN 60kN 42.9m/min
II 37.5kN 45kN 59.8m/min
III 31.25kN 37.5kN 65m/min
IV 25kN 30kN 76m/min
Structural parameters Drum groove bottom diameter 395mm
Maximum applicable diameter of wire rope 26mm
Dimensions 4300×2200×2500mm
Weight 4900kgs
Power source Model DF-900
Speed 2300r/min
