Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Use and Characteristics
During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.
Adopt single-arm style, free from direction restriction, use convenience.
The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.

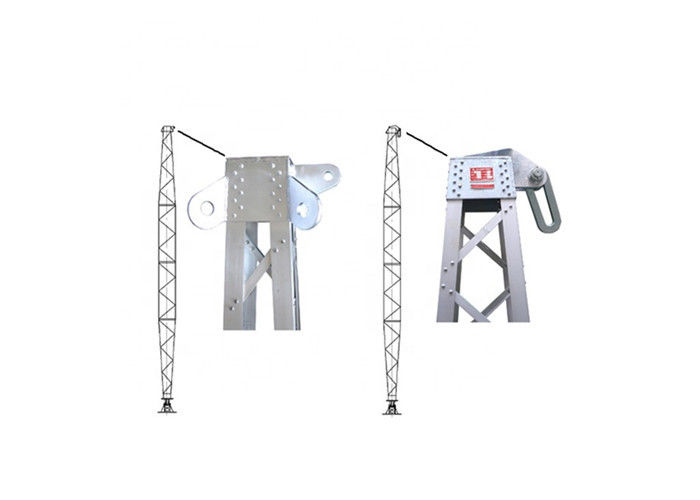

Aluminum alloy gin poles is used for erection of transmission line tower in the way of piece by piece. It is light and high strength. There are different designes in the head and base of gin poles.
Technical Data
| Item number | Model |
Range (M) |
Section(MM) |
Main part size (MM) |
Accessory size (MM) |
Vertical Load (KN) |
Safety Factor (K)
|
Weight (KG/M) |
| 25*25*3 | 13-38 | 2.5 | 10.5 | |||||
| 03141 | LBNX-300B | 11-18 | 300*300 | 50*50*5 | 30*30*3 | 15-40 | 2.5 | 11.0 |
| 03151 | LBNX-400 | 12-20 | 400*400 | 50*50*5 | 30*30*3 | 14-43 | 2.5 | 14.6 |
| 03511 | LBNX-500A | 12-20 | 500*500 | 60*60*5 | 30*30*3 | 34-75 | 2.5 | 18 |
| 03515 | LBNX-500B | 14-22 | 500*500 | 60*60*5 | 40*40*3 | 2.5 | 20 | |
| 03521 | LBNX-500C | 15-23 | 500*500 | 70*70*6 | 40*40*3 | 42.88 | 2.5 | 21 |
| 03525 | LBNX-500D | 17-25 | 500*500 | 70*70*6 | 50*50*4 | 2.5 | 22 | |
| 03531 | LBNX-600A | 15-23 | 600*600 | 60*60*6 | 40*40*3 | 38.75 | 2.5 | 20 |
| 03535 | LBNX-600B | 17-25 | 600*600 | 70*70*6 | 40*40*3 | 2.5 | 21 | |
| 03541 | LBNX-600C | 17-25 | 600*600 | 70*70*6 | 50*50*4 | 58.119 | 2.5 | 22 |
| 03545 | LBNX-600D | 17-25 | 600*600 | 75*75*6 | 50*50*4 | 2.5 | 24 | |
| 03601 | BNX-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 17-35 | 2.5 | 33 |
| 03602 | BNX-400 | 12-16 | 400*400 | 50*50*5 | 30*30*3 | 29-51 | 2.5 | 43 |
| 03603 | BNX-500 | 16-24 | 500*500 | 63*63*6 | 30*30*3 | 41-93 | 2.5 | 54 |
| 03604 | BNX-600 | 16-32 | 600*600 | 70*70*6 | 40*40*4 | 72-221 | 2.5 | 63 |
| 03605 | BNX-700 | 20-32 | 700*700 | 80*80*6 | 40*40*4 | 115-294 | 2.5 | 75 |
