|Drilling Depth:||0-6M||Drilling Diameter:||1-2M|
|Lifting Method:||Full Hydraulic||Auger Material:||High-manganese Carbon Steel|
|Crane:||3T/5T/8ton Crane||Tractor:||Model 1004 BOMR Tractor, 100HP, Four Wheel Drive|
double braid rope,
tower gin pole,
Tower Erection Tools 100HP
Tractor: BOMR tractor with 4*4 drive
Working Power: 100HP
Hole Depth: 100-6000MM
Hole Diameter: 300-2000MM
Bit Material: Alloy Steel
Drill Pipe Reamer Material: Manganese Steel
Steering System: Hydraulic
Working Site: big plant, wooden pole, power pole, wire pole, telegraph pole etc
Working Soil: loess and clay layer, including pebbles gravel and sandy soil

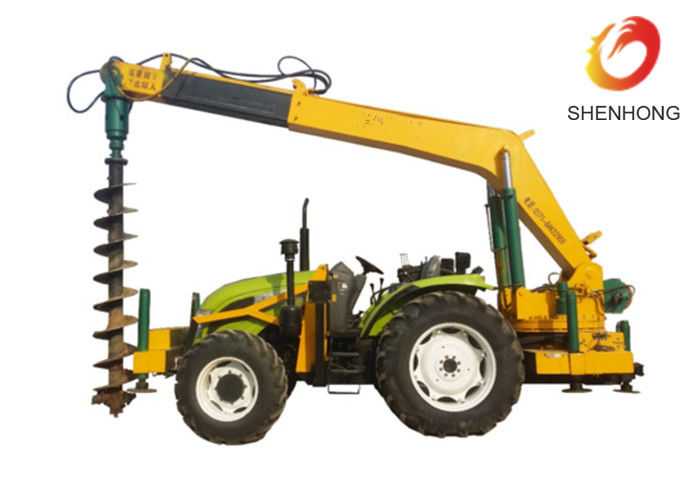

This device has the function of digging ,vertical pole, put line ,bulldozing ,grinding, traction, referred to as the put line integrated machine,patent number:20122172343.2,widely used in electric power ,telec-ommunications,municipal energingconstruction,planting trees,cement poles pit digging ,solar photov-olatic power generation project in solar panel rack ,screw pile,vertical drilling rod,ditching,put line,backfill soil,ground of traction and lifting 3-8Tobject,is the ideal choice for individuals and units of construction eq-uipment.Suitable for all kinds of terrain.the losser layer,clay layer,containing pebbles,grave soil, weathered rock and soil,frozen soil building garbage,backfill sand,garbage layer
1. Have four hydraulic stabilizer legs, with cross-country 2 or 4 wheel-drive, with wide tires
2. 360° rotation gear motor, hydraulic hoisting and drilling system, combining the auger drill rig with crane, one equipment can realize the drilling and pole uprighting work, more efficient and cost-effective.
3. YTO tractor as power, strong enough , strong cross-country power. Fully hydraulic driving. Full-automatic put and upright the pole.
Benefits of Pole Erection Machine
(1) Huge cost saving , very high speed of work and reduce the burden of labor management
(2) Eliminate the prevailing labor problem completely thus leads to project on time execution.
(3) High production capacity with proper planning and execution per shift of 8 working hours,
(4) which can complete the pole installation of 25 to 30 poles per shift by two labors only.
(5) Pole erection working can be done by two labors only against the current manual practice of 12 to 14 labors.
(6) Takes a little time to make a pit against the time taken by manual labor is 5 to 6 hours.
(7) Cost Saving for contractor.
|Drilling depth||0 -6m|
|Standard drill pipe||300mmx3M,600mmx3M|
|Lifting method||Full hydraulic|
|Standard drilling time||40s (diameter of 300mm-500mm)|
|Drill Head Material||Tungsten alloy|
|Auger Material||High-manganese carbon steel|
|Tractor||Model 1004 BOMR tractor, 100HP, four wheel drive|
|Application||loess, clay, pebble sand, weathered granite, tundra.|
|Not suitable for||Rocks, whole sand bed ,household garbage and so on.|
|Operator needed||1 person|
