Product Details
Place of Origin: Jiangsu,China
Brand Name: Shenhong
Certification: ISO
Model Number: LBGT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: US $100~1000
Packaging Details: Export case
Delivery Time: 20 work days after deposit
Supply Ability: 200 Set/Sets per Month
Application: |
Transmission And Distribution Construction |
Weight(kg): |
5.5 , 7.5 , 8 |
Length(m): |
4.5~8 |
Cross Section(mm): |
100 , 120 , 150 |
Application: |
Transmission And Distribution Construction |
Weight(kg): |
5.5 , 7.5 , 8 |
Length(m): |
4.5~8 |
Cross Section(mm): |
100 , 120 , 150 |

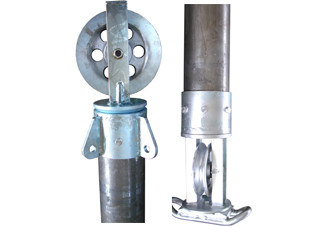

Aluminum Alloy A-Sharp Lattice Gin Pole For Power Distribution
Uses:To assemble and erect the tower in transmission and distribution construction.
Notes:
1.Used high strength aluminum alloy tube as main materials,steel parts are galvanized.
2.Have to purchase small gin pole support(03201,03202).
3.The safety factory is 1.5.
Technical Data
| Model | Length(m) | Allowable axial direction load(KN) | Cross section(mm) | Weight(kg/m) |
| LBGT100-5 | 5 | 14 | Φ100 | 5.5 |
| LBGT100-6 | 6 | 11 | ||
| LBGT120-4.5 | 4.5 | 35 | Φ120 | 7.5 |
| LBGT120-5 | 5 | 26 | ||
| LBGT120-6 | 6 | 18 | ||
| LBGT120-7 | 7 | 14.5 | ||
| LBGT150-6 | 6 | 31 | Φ150 | 8 |
| LBGT150-7 | 7 | 22 | ||
| LBGT150-8 | 8 | 16 |
