Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: CE,BV,ISO
Model Number: SIPZ-5A
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: PV plastic
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Application: |
Power Construction |
Capacity: |
5 Ton |
Diameter Of Coil: |
1600-2400mm |
Width Of Coil: |
1350mm |
Brake Torque: |
1000N.m |
Weight: |
215kg |
Application: |
Power Construction |
Capacity: |
5 Ton |
Diameter Of Coil: |
1600-2400mm |
Width Of Coil: |
1350mm |
Brake Torque: |
1000N.m |
Weight: |
215kg |

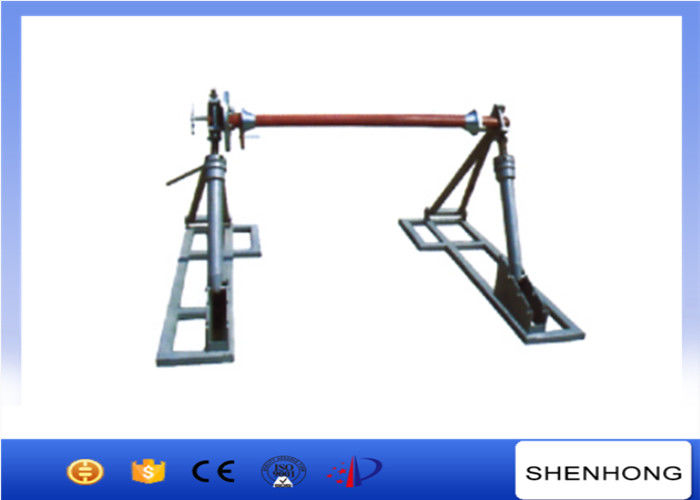

Integrated disc tension brake cable reel drum stand for 50KN capacity
Application
It is used to support reel in tension releasing wire or mechanically linepulling wire or machanically linepulling wire and to brake the reel.It is convenient transportation because it can be disassembled into 3 pieces.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical data of Integrated disc tension brake cable reel drum stand for 50KN capacity
| Model | SIPZ5A | |
| Applicable reel | Diameter of coil(mm) | Φ1600-2400 |
| Width of coil(mm) | ≤1350 | |
| Diameter of axle hole(mm) | Φ65-100 | |
| Maximum weight(kg) | 5000 | |
| Brake torque(N.m) | 1000 | |
| Linespeed(m/min) | 80 | |
| Weight(kg) | 215 | |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
