Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: CE,BV,ISO
Model Number: SIPZ-7
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: PV plastic
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Application: |
Line Construction |
Capacity: |
70KN |
Diameter Of Coil: |
2500mm |
Width Of Coil: |
1700mm |
Brake Torque: |
2000N.m |
Weight: |
480kg |
Application: |
Line Construction |
Capacity: |
70KN |
Diameter Of Coil: |
2500mm |
Width Of Coil: |
1700mm |
Brake Torque: |
2000N.m |
Weight: |
480kg |

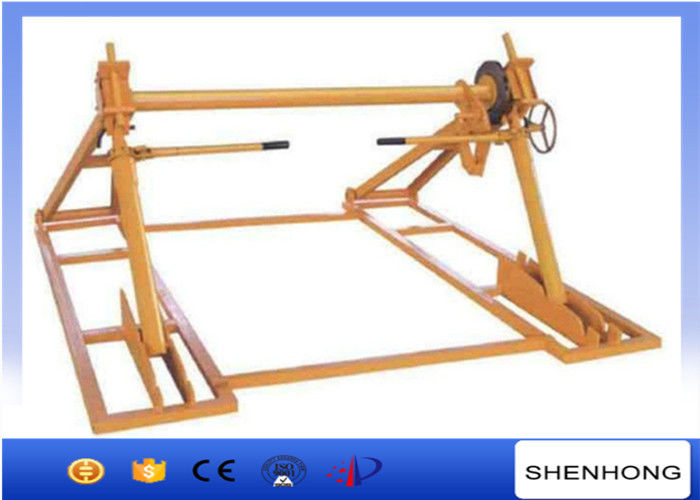

SIPZ-7 70KN Integrated cable reel drum stand with disc tension brake
Application
It is used to support reel in tension releasing wire or mechanically linepulling wire or machanically linepulling wire and to brake the reel.It is convenient transportation because it can be disassembled into 3 pieces.
Technical data of SIPZ-7 70KN Integrated cable reel drum stand with disc tension brake
| Model | SIPZ-7 | |
| Applicable reel | Diameter of coil(mm) | Φ1800-2500 |
| Width of coil(mm) | ≤1700 | |
| Diameter of axle hole(mm) | Φ120 | |
| Maximum weight(kg) | 7000 | |
| Brake torque(N.m) | 2000 | |
| Linespeed(m/min) | 80 | |
| Weight(kg) | 480 | |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
