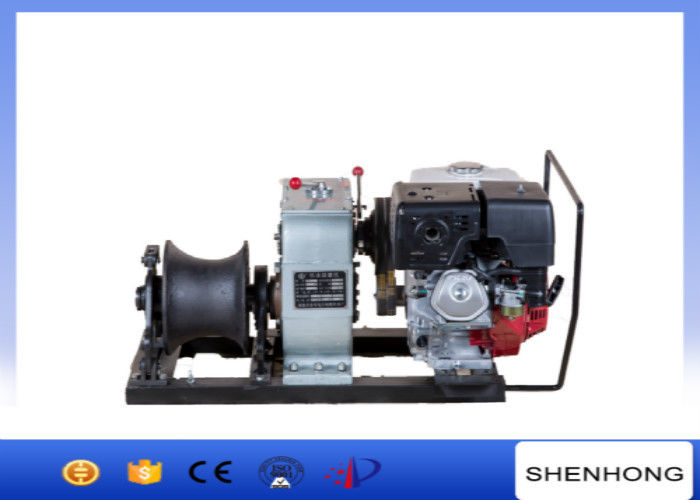

50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting

50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting
50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting 50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting 50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting

Large Image :  50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting Get Best Price

Product Details:
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: CE,BV,ISO
Model Number: JJM5Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Detailed Product Description
Application: Construction Capacity: 50KN
Engine: HONDA Gasoline Material: Steel
Weight: 185kg Warranty: One Year
High Light:

electrical wire pulling tools

,

wire pulling tools

50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting



Application

It referred to as gasoline winch, mainly used for erecting air high-voltage transmission lines and the laying of underground cables, gasoline engine powered winch automatic clamp brake and clutch transmission chain brake two kind of braking device, in the opposite direction are positive, the braking action.

Gasoline Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Features

1) Speedy and Efficient

2) Safe and Reliable

3) Compact structure

4) Widely used

5) Light weight



Technical data of 50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting

Model Type Engine Power Diameter of drum Rated load Gear Pulling Speed(m/min) Weight(kg)
JJM5Q

HONDA gasoline, 13HP



400mm



50KN



Slow 8.5 185
Quick 13.4
Reverse 9.6



50KN 13HP HONDA Gasoline Engine Cable Pulling Winch for Hoisting 0

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
