Cable Handling Equipment / Hydraulic Cable Drum Lifting Jack Stand 1 year Warranty

Product Details

Place of Origin: MADE IN CHINA

Brand Name: SHENGHONG

Certification: ISO

Model Number: DL021

Payment & Shipping Terms

Minimum Order Quantity: 1 pair

Price: negotiation

Packaging Details: export standard package

Delivery Time: 15 days after deposit

Payment Terms: L/C, T/T, Western Union

Get Best Price
Highlight:

cable jack stands

,

cable reel jacks

Product Name:
Hydraulic Cable Drum Lifting Jack Stand
Warranty:
1 Year
Type:
Cable Drum Jacks
Material:
Steel
Application:
Cable Release
Product Name:
Hydraulic Cable Drum Lifting Jack Stand
Warranty:
1 Year
Type:
Cable Drum Jacks
Material:
Steel
Application:
Cable Release
Cable Handling Equipment / Hydraulic Cable Drum Lifting Jack Stand 1 year Warranty

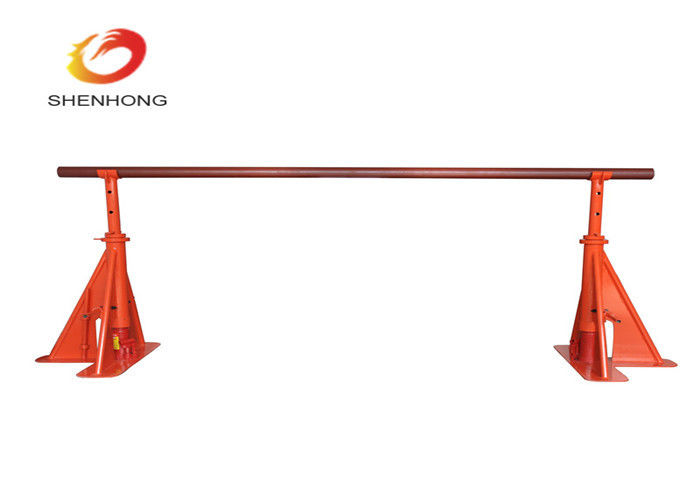

Cable Handling Equipment Hydraulic Cable Drum Lifting Jack Stand



Description

Designed for heavy drum lifts. Robust engineered construction with hydraulic jacks and adjustable height spindle support blocks.Cable Jack,Cable Drum Jack,Cable Jack,Hydraulic Cable Jack Set.

Lightweight hydraulic drum jacks which are almost indispensable for use in the cable yard. Cable Drum Rotator Versatile and easily adjustable within seconds to accommodate a vast range of drums. Drum Jacks excellent all round stability, fitted with wheels to be easily moved by one person. Hydraulic Cable Jack supplied complete with spindle bar and locking collars.



Product No.: DL021 Product name: Trapezoidal and hydraulic cable drum jack

Application: applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.

Hydraulic Cable Drum jack is commonly used in the construction of cable projects. It is made up of two triangle shape brackets and a strong axis. Easy to operate and use. adjustable for the lifting; suitable for manual operation.



Feature

1.Application: It was applied in the supporting of cable drum.

2.Features: Simple operation, secure and durable.

3.Structure: it can be designed according to need, mechanical, hydraulic or combined type.



Data Sheet

Product No. Rated load

Applicable drum

diameter

Applicable drum

width

Axle bar

diameter

Dead weight
DL021-3 3T φ1400mm-φ2200mm ≤1400mm φ60mm 70kg
DL021-5 5T φ1600mm-φ2600mm ≤1600mm φ76mm 95kg
DL021-10 10T φ2700mm-φ3300mm ≤1800mm φ100mm

145kg
