Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SKL-25
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Rated Load(KN): |
25 |
Weight(kg): |
3 |
Material: |
Aluminum Alloy |
Max Open: |
24mm |
Applicable Conductor: |
150-240mm2 |
Application: |
Sag Adjusting And Tensioning |
Rated Load(KN): |
25 |
Weight(kg): |
3 |
Material: |
Aluminum Alloy |
Max Open: |
24mm |
Applicable Conductor: |
150-240mm2 |
Application: |
Sag Adjusting And Tensioning |

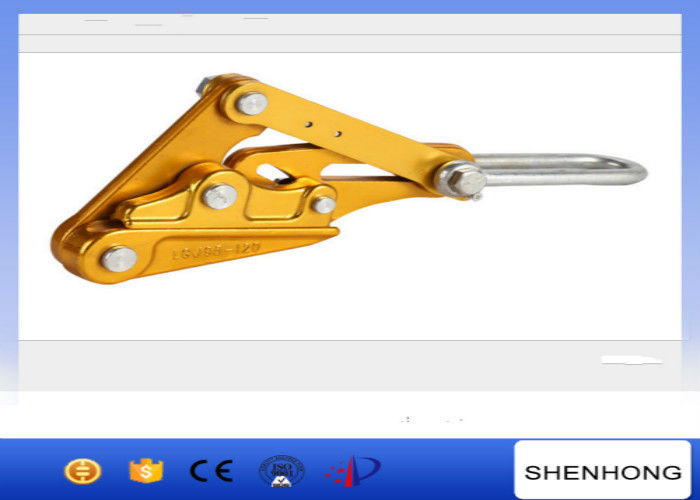

Aluminum Radial Locking Wire Grip Clamp for ACSR Conductor SKL-25
Quick Information
Model:SKL-25
Rated Load:25KN
Applicable Conductor:150-240mm2
Weight:3kg
A device for gripping,pulling and tensioning of sheathed wire ropes, and metal rods,essy operation with safety.Excellent quality.
A device made in alloy for gripping,pulling and tensioning of sheathed wire ropes, cables ,earht or ground cable, cable stretcher and metal rods according to the wire diameter.
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
|
0101
|
SKL-7
|
7
|
25~70
|
14
|
1.0
|
|
0102
|
SKL-15
|
15
|
95~120
|
18
|
1.4
|
|
0103
|
SKL-25
|
25
|
150~240
|
24
|
3.0
|
|
0104
|
SKL-40
|
40
|
300~400
|
32
|
4.0
|
|
0105
|
SKL-50
|
50
|
500~630
|
36
|
6.6
|
Uses: Apply to sag adjusting and tensioning on overhead line construction.
Features: The clamp is forged of high strength aluminum alloy with small and light unit weight.
Shipment
1. The wire grips will be shipped in plywood case by air or by ship.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Package
1. The wire grips will be packed in plywood case.
2. It also can be packed in wood case or steel frame case.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
