Product Details
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JJM8D
Payment & Shipping Terms
Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: Standard export wooden case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 set/sets per month
Type: |
Electric Winch |
Rated Load: |
5.5KW |
Weight: |
180kg |
Motor: |
Electric 220V/380v |
Load Capacity: |
8T |
Application: |
Cable Pulling |
Type: |
Electric Winch |
Rated Load: |
5.5KW |
Weight: |
180kg |
Motor: |
Electric 220V/380v |
Load Capacity: |
8T |
Application: |
Cable Pulling |

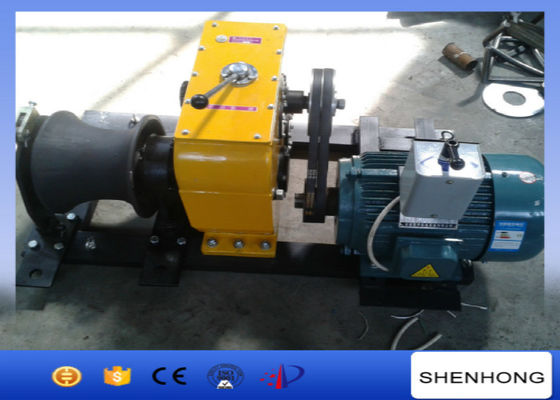

Heavy Duty Electric Cable Pulling Winch 8 Ton 5.5KW Rated Load Two Brake Installment
1. Application:
Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages, this Powered winch is popular with the electric workers.
2. Brake:
there are two kinds of brake installment in the machine-the auto clamp-brake and the clutch-drived chain brake.Both of them can play the brake function in clockwise and reverse-clockwise directions.
3. Hand installment:
if the prime motor doesn’t work well during the working process, you can use the hand installment to help you complete the job.
4. Lubrication
using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing.
5. Operation methods
1. before turning on the machine,you must turn on the clutch first and put the racker for crosspiece-changing in the zero position
2. when moving the crosspiece,you should be quick.Otherwise the brake won’t work well.when turning on the machine,you shouldn’t work too fiercly
3. when changing the crosspiece position,you must turn on the clutch.Otherwise the gear will be damaged.After that,you should check whether the changing job is well done.Make sure you haven’t changed two crosspieces in one time.
4. If there is any difficulty during the process of changing crosspiece position,you shouldn’t try to complete the job forcrfully.Instead you should use the hand installment to help you complete the job.Concrete procedure:using the spanner to move the hand installment to a position with a certain angle,then you can change the crosspiece position smoothly.
6. Technical Data
| Model NO. | Engine | Gear | Pulling Speed(m/min) | Rated Pulling Force(Ton) | Weight(Kg) |
| JJM8D | Electric motor 5.5KW | Slow | 4 | 8 | 180 |
| Fast | 7 | 4 | |||
| Reverse | 5 | NO Lifting |
