Product Details
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: T6-10
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Working Load: |
1T |
Suitable Rope: |
6-10mm |
Application: |
Tightening Wire Rope |
Weight: |
0.97kg |
Product Name: |
Bolt Type Kitto Clamp 3T For Gripping Steel Wire Rope 16-20mm |
Item: |
Kitto Clamp |
Working Load: |
1T |
Suitable Rope: |
6-10mm |
Application: |
Tightening Wire Rope |
Weight: |
0.97kg |
Product Name: |
Bolt Type Kitto Clamp 3T For Gripping Steel Wire Rope 16-20mm |
Item: |
Kitto Clamp |

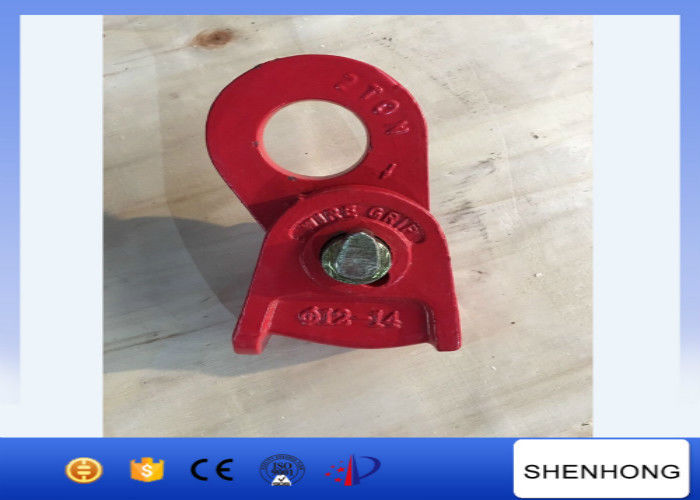

Elevated Durability Come Along Clamp for Tension 6-10mm Steel Wire Rope
We are offering one of best and a wide range of Kitto Clamps to our valuable clients. These clamps are designed and developed using high-grade raw material, which is sourced from the reliable vendors of the market. These clamps are widely acclaimed by the customers due to their longer functional life, corrosion & abrasion resistance, robust construction, excellent performance and easy handling & operations. We are providing these Kitto Clamps at affordable rates to our clients.
Features:
1. Rigid construction
2. High efficiency
3. Elevated durability
Applicaction
Wire rope bolt type, is used for steel core aluminum stranded wire;Steel strand.Instruments of wire rope or wire clamp and tighten.
1. Bolt type,easily application.
2. Strong tension stress.
3. Groove type structure,no damage to the conductor.
KITTO CLAMP
These clamps are used wherever self gripping of steel wire rope is required. The clamps are assembled from its different alloy steel forged parts. The dimension of grooves depends upon the diameter of wire rope that has to grip.
Technical Data
| Item Number | Load (T) | Wire Rope(mm) | Dimension(mm) | Weight(kg) | Package | |||
| A | B | C | L | Pkg/pcs | ||||
| T6-10 | 1 | 6-10 | 65 | 32.2 | 124.5 | 71.0 | 0.97 | 10 |
| T12-14 | 2 | 12-14 | 80 | 40.0 | 162.0 | 89.5 | 2.24 | 6 |
| T16-20 | 3 | 16-20 | 96 | 44.5 | 217.0 | 134.0 | 5.00 | 6 |
| T22-26 | 5 | 22-26 | 96 | 49.0 | 218.0 | 141.0 | 6.70 | 4 |
| T28-32 | 6 | 28-32 | 96 | 49.0 | 223.0 | 141.0 | 7.54 | 4 |
