Product Details
Place of Origin: Jiangsu,China
Brand Name: SHENHONG
Certification: CE,ISO
Model Number: SA-YZ30A
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: PV plastic
Delivery Time: a month after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Sets per Month
Application: |
Line Construction |
Maximum Tension: |
30KN |
Continuous Tension: |
25KN |
Maximum Speed: |
5km/h |
Max Dia Of Wire: |
32mm |
Weight: |
1700KG |
Application: |
Line Construction |
Maximum Tension: |
30KN |
Continuous Tension: |
25KN |
Maximum Speed: |
5km/h |
Max Dia Of Wire: |
32mm |
Weight: |
1700KG |

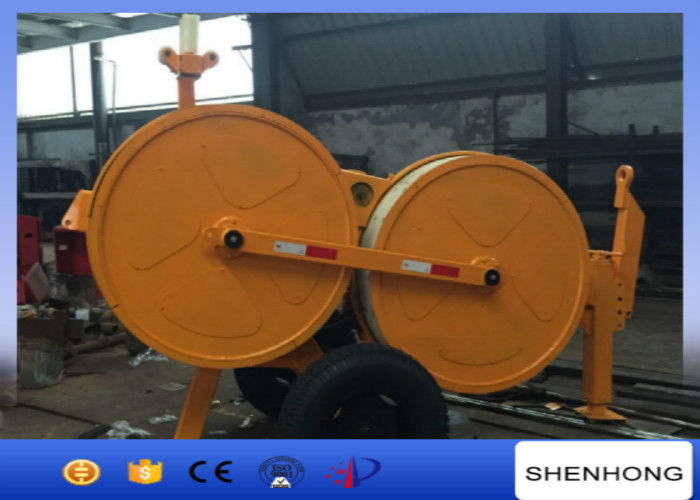

3T OPGW installation tool hydraulic cable puller tensioner for line construction
Application
It is adequate to tension releasing various conducts and earthwires, and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS selfstand optic cable.ect.
Feature :
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. It adapt Italian reducer.
Main component
1. Engine : domestic water–cooled engine .
2. Main pump and main motor : Chineae famous branded pump and motor.
3. Reducer : RR(Italian)
4. Radiator : AKG
5. Hydraulic instrument :
6. It can choose import engine
Technical data of 3T OPGW installation tool hydraulic cable puller tensioner for line construction
| Model Type | SA-YZ30A |
| Maximum Tension(KN) | 30 |
| Continuous Tension(KN) | 25 |
| Maximum speed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ1200 |
| Number of groove | 5 |
| Maximum pullback(KN) | 20 |
| Maximum suitable conductor diameter(mm) | Φ32 |
| Engine power/speed(kw/rpm) | 11/2200 |
| Weight(kg) | 1700 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
