Home ProductsDiesel Cable Winch

Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter

Good quality Overhead Line Construction Tools for sales
Good quality Overhead Line Construction Tools for sales
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

I'm Online Chat Now

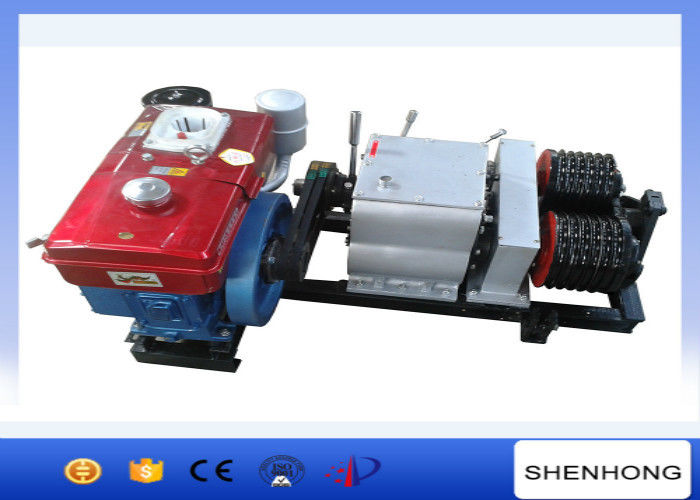

Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter

China Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter supplier
Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter supplier Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter supplier

Large Image :  Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SJM5Q

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Contact Now
Detailed Product Description
Motor: Water Cooled Diesel Engine Capacity: 50KN
Type: Diesel Cable Winch Usage: Cable Pulling
Engine Power: 6.3KW Weight: 280kg
Size: 1200×600×500 Capstan: Double

Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter​




INTENDED USE

Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Characteristics

5 Ton double capstan winch is a traction hoisting operation carried out in the filed of construction site,mainly used in electric power,telecommunications line tower,stood in the receiving ,put on the line,the laying of cable ,hauling or lifting.



Technical Data

Model number SJM-5SQ
Engine HONDA GX390/186F Diesel Engine
Power 13HP,3600rpm/6.3KW,3600rpm
Capstan 6 nos of groove,230mm bottom diameter
Weight(kg) 280
Dimension(mm) 1300*670*600
Gear Forward Reverse
Slow I Slow II Quick I Quick II Slow Quick
Rated Pulling(KN) 50 30 13 10 - -
Pulling Speed(m/min) 6 10 23 30 5 17
It is 4 stages.
Reduction Ratio:60:1



Winch Drawing

Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter

Diesel Engine Pole Setting Double Capstan Winch 5 Ton 230mm Bottom Diameter

Spare Parts

1 NO.5 shaft 2 double cap 3 bearing
4 brake ratchet 5 brake pawl 6 ratchet spring
7 wheel gear 8 09 wheel gear 9 bearing
10 NO.3 Shaft right cover 11 NO.4 shaft 12 Oil seal
13 wheel gear 14 NO.3 shaft 15 key pin
16 NO.1 Shaft right cover 17 bearing 18 bearing
19 bearing 20 NO.1 shaft dual gear 21 bearing
22 NO.1 shaft right cover 23 NO.1 shaft 24 NO.1 shaft washer
25 NO. 2 shaft dual gear 26 NO. 2 shaft right cover 27 Oil seal
28 NO. 2 shaft 29 bearing 30 Reverse gear
31 bearing 32 reverse gear shaft 33 nut
34 shifting handle 35 shifting handle cover 36 Form arm
37 shifting fork 38 NO.2 shaft Triple gear 39 bearing
40 NO.2 shaft left cover 41 Clutch half round 42 Clutch inner sleeve
43 clutch gear 44 Clutch wrap 45 Linkage disk
46 bearing 47 Clutch disc 48 Big Pulley
49 Oil seal 50 bearing 51 bearing
52 NO.1 shaft Triple gear 53 Movable gasket 54 Copper bearing
55 bearing 56 space ring 57 Brake clutch gear
58 friction plate 59 NO.1 shaft Triple gear 60 Copper space ring
61 Copper bearing 62 NO.4 shaft left cover 63 bearing
64 09 Gear cap 65 gear 66 friction plate
67 gear 68 friction disc 69 NO.5 shaft left cover
70 Gear box

Contact Details
SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD

Contact Person: Ms. Judy

Send your inquiry directly to us (0 / 3000)
