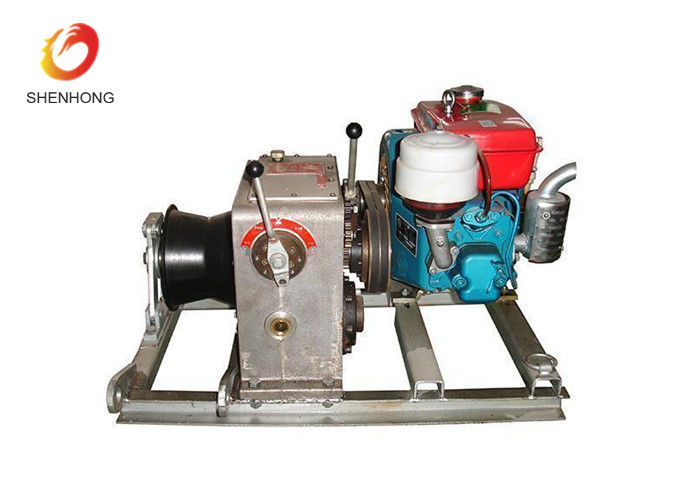

3T 5T Engine Powered Diesel Cable Winch Sagging Operation In Line Construction

3T 5T Engine Powered Diesel Cable Winch Sagging Operation In Line Construction
3T 5T Engine Powered Diesel Cable Winch Sagging Operation In Line Construction 3T 5T Engine Powered Diesel Cable Winch Sagging Operation In Line Construction

Large Image :  3T 5T Engine Powered Diesel Cable Winch Sagging Operation In Line Construction Get Best Price

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JJQ-30-B/JJQ-50-B

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7-10 days after payment
Supply Ability: 300 set/sets per month
Detailed Product Description
Warranty: 1 Year Engine: Diesel Engine
Capacity: 30/50KN Type: Diesel Winch
Usage: Cable Pulling In Line Construction. Product Name: 3T 5T Diesel Engine Powered Winch
High Light:

engine powered winch

,

wire rope winch

3T 5T Engine Powered Diesel Cable Winch Sagging Operation In Line Construction



This diesel engine powered winch is mostly used in the line construction for erecting pylon and sagging operation.

Detailed Data

Item Number 09111 09112 09112D
Model JJC-30 JJC-50 JJC-50D
Diesel Power (hp) 4 6 7
Diesel Engine Model Z170F R175A R180
Rotational Speed of Diesel Engine (rpm) 2600 2600 2600
Traction Force (kN)/Pulling Speed (rpm) Quick 7/18.1 15/13.8 15/13.8
Moderate 15/7.2 30/5.7 30/5.7
Slow 30/4.6 50/3.6 50/3.6
Reverse -/5.2 -/6.3 -/4.1
Diameter of Drum Groove (mm) Φ160 Φ160 Φ160
Overall Dimension (mm) 800×620×520 890×670×520 890×670×520
Weight (kg) 137 170 182



Use: Applied in stringing projects and erecting towers.

Feature:
1.Diesel Engine Powered Winch
2.Reliable quality and service
3.Competitive price
4.Short leading time
5.Easy operation



3T 5T Engine Powered Diesel Cable Winch Sagging Operation In Line Construction 0
