Fast Speed Diesel Cable Winch 30KN With Shaft Driven Transmission

China Fast Speed Diesel Cable Winch 30KN With Shaft Driven Transmission supplier
Fast Speed Diesel Cable Winch 30KN With Shaft Driven Transmission supplier Fast Speed Diesel Cable Winch 30KN With Shaft Driven Transmission supplier

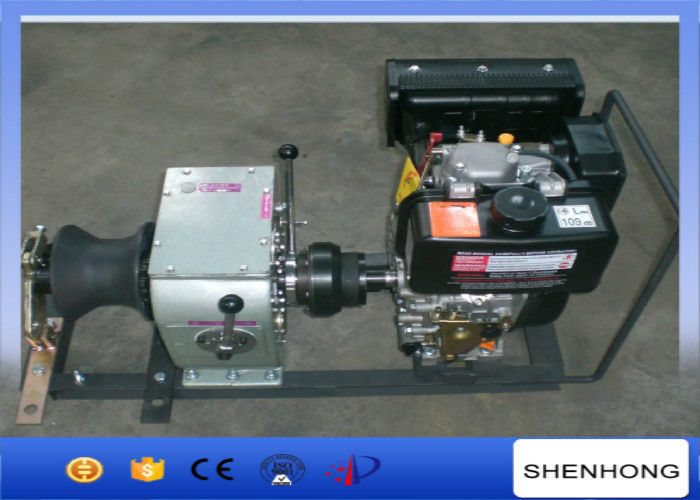

Large Image :  Fast Speed Diesel Cable Winch 30KN With Shaft Driven Transmission

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JJM3B

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Contact Now
Detailed Product Description
Motor: Air Cooled Diesel Engine Capacity: 30KN
Type: Diesel Cable Winch Usage: Cable Pulling
Engine Power: 4HP Weight: 100kg
Size: 840×600×500 Transmission: Shaft Driven

Fast Speed Diesel Cable Winch 30KN With Shaft Driven Transmission​


INTENDED USE

Cable Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Features

Small size & compact structure. The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

Light weight. For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wild field helps to reduce crop losses.

High efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

Safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

Widely used. According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.



Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Line Pull(Ton)
JJM3B Air Cooled Diesel Engine 4HP Slow 5 3
Quick 12 1.8
Reverse 5



GENERAL SAFETY RULES

WARNING:Read and understand all the instructions.Failure to follow all instructions listed below may result in electric shock,fire or serious injury.

WARNING:The warnings,cautions and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could accur.It must be understood by the operator that common sense and caution are factors which cannnot be built into this product,but must be supplied by the operator.



WINCH USE & SAFETY
1. WARNINGNever overloaded.
2. Always keep the oil in the gearbox up to 0.8L.
3. There are spring and steel ball in the shifting fork to prevent jumping gears.Always check if the spring and steel balls are in the right position.
4. Always check the wear pattern of brake pad.
5. Never change the anchor position randomly.
6. Always keep the guard sheet lock core grinder.Never use it when the guard sheet is off.
7. Gearbox is made of aluminum alloy,never screw too tight.
8. If there is anything drop in the gearbox,always stop the working machine first.Otherwise it may cause damage to the wheel gear and box.
9. Always check if there is anywhere loosens after long distance transportation.10. Follow the instructions,fill right oil before operating.
