Cable Pulling Gas Powered Winch Air Cooled Diesel Engine 840×600×500

China Cable Pulling Gas Powered Winch Air Cooled Diesel Engine 840×600×500 supplier
Cable Pulling Gas Powered Winch Air Cooled Diesel Engine 840×600×500 supplier Cable Pulling Gas Powered Winch Air Cooled Diesel Engine 840×600×500 supplier

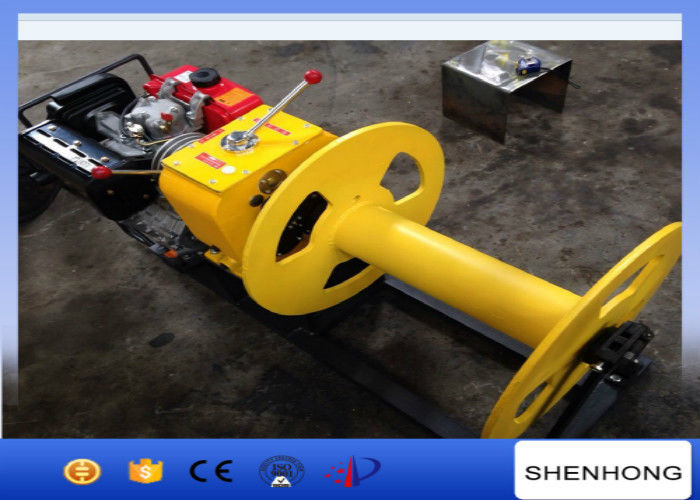

Large Image :  Cable Pulling Gas Powered Winch Air Cooled Diesel Engine 840×600×500

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JJM3-C

Payment & Shipping Terms:

Minimum Order Quantity: 2 sets
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Contact Now
Detailed Product Description
Motor: Air Cooled Diesel Engine Capacity: 30KN
Type: Powered Winch Usage: Pulling/Hoisting
Engine Power: 4HP Weight: 100kg
Size: 840×600×500 Product Name: 3 Ton Diesel Cable Winch Winding 10mm 300M Steel Wire Rope For Cable Pulling

Cable Pulling Gas Powered Winch Air Cooled Diesel Engine 840×600×500​


Introduction
The hoist another name is winch. Vertical lifting transport machinery is an important component of the tie in with the derrick, mast, pulley blocks, and auxiliary equipment, used to enhance the materials, installation of equipment operations, from human or mechanical power-driven drum, winding traction rope to complete the installation work. Vertical, horizontal or inclined simple tractor Lifting heavy objects. Two types of the hoist are manual and electric two kinds. The design of the 3-ton electric hoist motor contions electromotor ,coupling,arrester,retarder,drum,boom sheave ,a system of pulleys set,hook, etc..

Application
Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground. They can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting. Based on so many advantages, this Powered winch is popular with the electric workers.

Features
1. Reasonable structure
2. Small volume
3. Light weight
4. Strong power
5. Nimble operation
6. Convenient transporting

Technical Data

Model Engine Gear Pulling Speed(m/min) Pulling Force(Ton) Weight(Kg)
JJM1Q HONDA GX160 5.5HP (Slow) 6 0.8 50
(Fast) 18 0.6
Reverse 15 No Lifting!
JJM1D Electric motor 2.2kw (Slow) 6 0.8 55
(Fast) 18 0.6
Reverse 15 No Lifting!
JJM3Q HONDA GX160 5.5HP/LIFAN Chinese Gasoline engine 6.6HP (Slow) 4 3.0 82
(Fast) 8 1.8
Reverse 4 No Lifting!
JJM3C Diesel engine(4HP) (Slow) 4 3.0 108
(Fast) 8 1.8
Reverse 4 No Lifting!
JJM3D Electric Engine 3KW (Slow) 3.5 3.0 108
(Fast) 7.5 1.8
Reverse 3.5 No Lifting!
JJM5Q

YAMAHA Engine MZ360/
HONDA Engine GX390/
LIFAN Chinese Gasoline engine

(Slow) 5 5.0 145
(Fast) 11 3.0
Reverse 3.2 No Lifting!
JJM5C Diesel Engine 6HP (Slow) 4.5 5.0 160
(Fast) 8.5 2.5
Reverse 4 No Lifting!
JJM5D Electric Engine 4KW (Slow) 4.5 5.0 108
(Fast) 8.5 3.0
Reverse 4 No Lifting!
JJM5B Diesel Engine R186 10HP I 5 5 160
II 9 3
III 14 1.5
IV 24 0.9
JJM8Q

HONDA Engine GX390/LIFAN Chinese Gasoline engine


(Slow) 4 8.0 180
(Fast) 8 4.0
Reverse 3.8 No Lifting!
JJM8C Diesel engine 10HP (Slow) 4 8.0 200
(Fast) 8 4.0
Reverse 5.5 No Lifting!
JJM8D Electric Engine 5.5KW (Slow) 4 8.0 200
(Fast) 7 4.0
Reverse 5 No Lifting!

Cable Pulling Gas Powered Winch Air Cooled Diesel Engine 840×600×500

WINCH USE & SAFETY
1. WARNINGNever overloaded.
2. Always keep the oil in the gearbox up to 0.8L.
3. There are spring and steel ball in the shifting fork to prevent jumping gears.Always check if the spring and steel balls are in the right position.
4. Always check the wear pattern of brake pad.
5. Never change the anchor position randomly.
6. Always keep the guard sheet lock core grinder.Never use it when the guard sheet is off.
7. Gearbox is made of aluminum alloy,never screw too tight.
8. If there is anything drop in the gearbox,always stop the working machine first.Otherwise it may cause damage to the wheel gear and box.
9. Always check if there is anywhere loosens after long distance transportation.10. Follow the instructions,fill right oil before operating.
