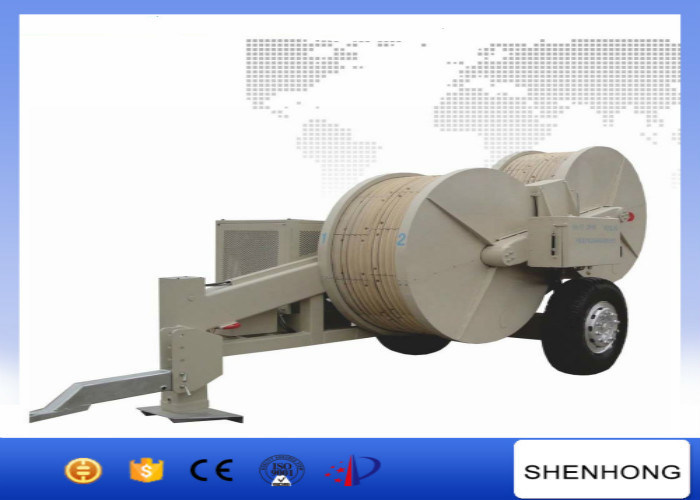

Two Bundle Conductor Hydraulic Tensioner Stringing Earth Wires SA-YZ2x80

China Two Bundle Conductor Hydraulic Tensioner Stringing Earth Wires SA-YZ2x80 supplier
Two Bundle Conductor Hydraulic Tensioner Stringing Earth Wires SA-YZ2x80 supplier Two Bundle Conductor Hydraulic Tensioner Stringing Earth Wires SA-YZ2x80 supplier

Large Image :  Two Bundle Conductor Hydraulic Tensioner Stringing Earth Wires SA-YZ2x80

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SA-YZ2x80

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: 20GP container
Delivery Time: 40 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10sets/month
Contact Now
Detailed Product Description
Product Name: SA-YZ2x80 Overhead Line Equipment Hydraulic Puller Tensioner For Two Conductor Maximum Linepull (kN): 2x80 Or 1x160
Continuous Linepull (kN): 2x75 Or 1x150 Maximum Linespeed (km/h): 5
Bullwheel Grooves Number: 2x5 Bullwheel Bottom Of Groove Diameter(mm): 1700

Two Bundle Conductor Hydraulic Tensioner Stringing Earth Wires SA-YZ2x80 ​



Essential parameter

Maximum Tension(kN)

2×80 or 1×160

Continuous Tension(kN)

2×75 or 1×150

Maximum speed (km/h)

5
Bullwheel bottom of groove diameter(mm)  Φ1700
Bullwheel grooves number

2×5

Maximum pullback (kN)

2×126

Maximum speedback (km/h)

2×1.6

Maximum suitable conductor diameter (mm)

Φ45

Engine power /speed (kW/rpm)

82.5/2500

Dimensions (mm)

5300 × 2300×2900

Weight(kg)

8500



Uses

It is used for stringing various conductors and earth wires.

It is stringing one conductor to tow bundle conductors.



·Feature :

  • Bullwheel with wearproof MC nylon lining segments.
  • Infinitely variable tension control and constant tension conductor stringing .
  • Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
  • attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand .

·Main component

1. Engine :Chinese famous brand water–cooled engine .

2. main pump and main motor : Rexroth (BOSCH )

3. Reducer : RR(Italian) or Rexroth

4. hydraulic valve : Rexroth (BOSCH )

5. radiator :AKG

6. hydraulic instrument :WIKA

7. it can choose :Deutz air–cooled engine .



Two Bundle Conductor Hydraulic Tensioner Stringing Earth Wires SA-YZ2x80
