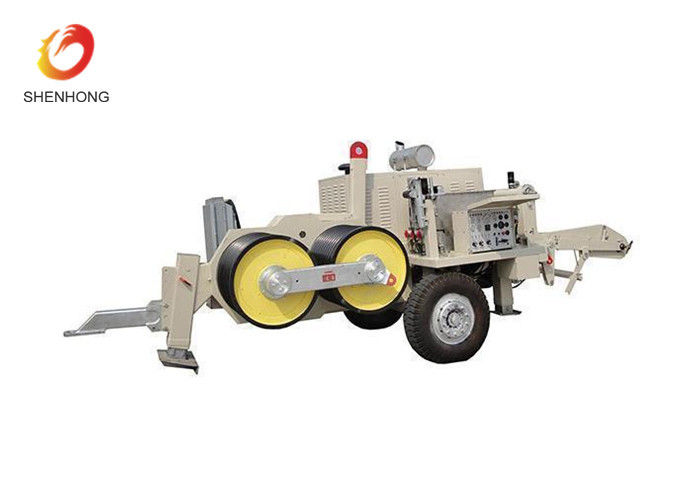

SA - YQ300 Cable Wire Rope Hydraulic Puller Tensioner 300KN Conductor Stringing Equipment

SA - YQ300 Cable Wire Rope Hydraulic Puller Tensioner 300KN Conductor Stringing Equipment
SA - YQ300 Cable Wire Rope Hydraulic Puller Tensioner 300KN Conductor Stringing Equipment SA - YQ300 Cable Wire Rope Hydraulic Puller Tensioner 300KN Conductor Stringing Equipment

Large Image :  SA - YQ300 Cable Wire Rope Hydraulic Puller Tensioner 300KN Conductor Stringing Equipment Get Best Price

Product Details:
Place of Origin: Jiangsu,China
Brand Name: Shenhong
Certification: ISO
Model Number: SA-YQ300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: US $35000~60000
Packaging Details: Export case
Delivery Time: 50 work days after deposit
Supply Ability: 5 Set/Sets per Month
Detailed Product Description
Max Linepull: 300KN Continous Line: 250KN
Maximum Through Connector Diameter (mm): 95 Weight: 11500kg
Engine Power/Speed: 298/2100 Number Of Bullwheel Grooves: 10
Max Suitable Steelrope Diameter: 38mm
High Light:

hydraulic pulling machine

,

conductor stringing equipment



SA - YQ300 Cable Wire Rope Hydraulic Puller Tensioner 300KN Conductor Stringing Equipment



Our SA-YQ300 Hydraulic Puller is equipped with a powerful electronic control engine. Its engine fully meets the current Tier 3/Stage Ⅲ emissions regulations of Europe non-road mobile machinery.

In use of this product, both traction force and pulling speed are infinitely variable. Users can visually read the pull in the rope from the line pull gauge. The maximum traction force for conductor-stringing operation can be preset by our users. Also, our product is designed with the overload automatic protection system.

Even if the motor suddenly flames out, or other reasons give rise to the hydraulic failure, our SA-YQ300 Hydraulic Puller will still run safely, due to the automatic braking function. The hydraulic pullrope pinch device is adopted to replace the reel easily. The steel wire rope automatically winding device is utilized for the convenience of arranging the rope as well as loading and unloading.



Main Technical Parameters

Model SA-YQ300 Hydraulic Puller
Maximum Traction Force (kN) 300
Continuous Tractive Effort (kN) 250
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ960
Number of Bullwheel Grooves 10
Maximum Diameter of Suitable Steel Rope (mm) Φ38
Maximum Through Connector Diameter (mm) Φ95
Engine Power / Speed (kW/rpm) 298/2100
Dimensions (mm) 5780×2350×2820
Weight (kg) 11500


Main Components

Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer RR (Italian)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument
Suitable Drum Model GSP1900 (Item number: 07125E)



SA - YQ300 Cable Wire Rope Hydraulic Puller Tensioner 300KN Conductor Stringing Equipment 0
