Small Volume Honda Gas Engine Powered Winch 50KN For Power Construction

China Small Volume Honda Gas Engine Powered Winch 50KN For Power Construction supplier
Small Volume Honda Gas Engine Powered Winch 50KN For Power Construction supplier Small Volume Honda Gas Engine Powered Winch 50KN For Power Construction supplier

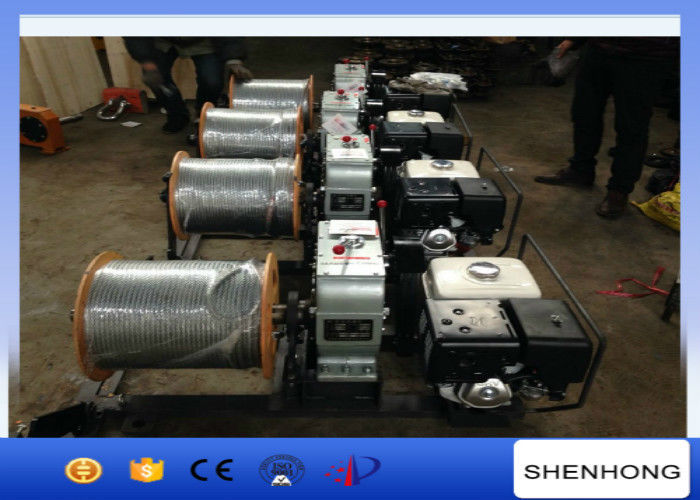

Large Image :  Small Volume Honda Gas Engine Powered Winch 50KN For Power Construction

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: JJM5Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood case
Delivery Time: 10 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/week
Contact Now
Detailed Product Description
Engine: Honda Gasoline Engine Power: 13HP
Load Capacity: 5T Cable Drum: It Can Wind 10mm 300M Wire Rope
Application: Cable Pulling Usage: Power Construction

Small Volume Honda Gas Engine Powered Winch 50KN For Power Construction​





Quick Detail

1. Gas engine powered winch

2. Max Pulling Force:50KN

3. Weight:292kg

4. Dimension:1200x600x700mm

5. Wire rope:10mm 300M



Application

It is used for tower erection and sagging operation in line construction. It can also be used for pulling conductor or underground cable.

Powered winches are the construction tools of erecting electric circuits of high pressure electric transmission in the sky and laying electrical cables underground.

They can complete the tasks of heavy-lifting and dragging such as erecting the wire.

Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convient transporting.

Based on so many advantages, this two models of Powered winch are popular with the electric workers.



Features

1. Speedy and Efficient.

2. Safe and Reliable.

3. Compact structure.

4. Small volume.

5. Light in weight.



Technical Data

Model Type Gear Pulling Force(KN) Pulling Speed(m/min) Power Weight(KG)
JJM5Q Slow 50 5 HONDA GASOLINE GX390 13HP 292
Fast 30 11
Reverse - 3.2



Why choose us

1. High quality and competitive price

2. Leading manufacturer for stringing equipment in China.

3. 8 years of production experience and more than 1000 customers in the country and abroad market. The set of winches have been sold to more than 20 countries.

4. Big stock condition for fast shipment.

5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service
