Gasoline Engine Gas Powered Winch , Take Up Machine Cable Pulling Winch

China Gasoline Engine Gas Powered Winch , Take Up Machine Cable Pulling Winch supplier
Gasoline Engine Gas Powered Winch , Take Up Machine Cable Pulling Winch supplier Gasoline Engine Gas Powered Winch , Take Up Machine Cable Pulling Winch supplier

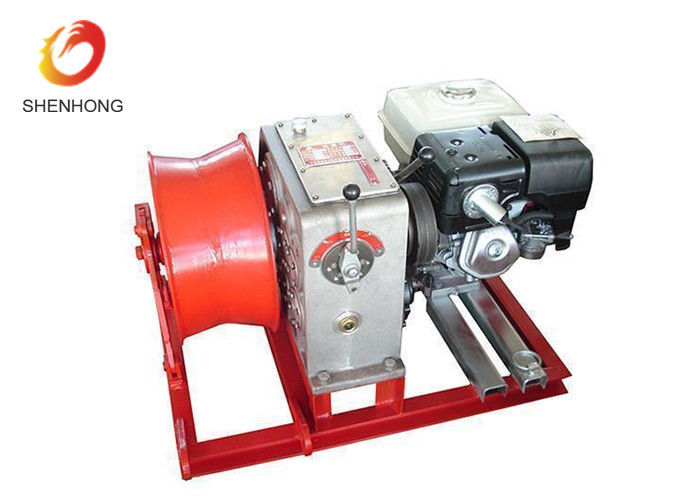

Large Image :  Gasoline Engine Gas Powered Winch , Take Up Machine Cable Pulling Winch

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JJM1Q

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: negotiation
Packaging Details: standard export wooden case
Delivery Time: 7 days after payment
Supply Ability: 500 set/sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Engine: Gasoline Engine
Capacity: 10KN Type: Gas Powered Winch
Usage: Wire Take Up Machine Product Name: Gasoline Engine Take-Up Machine Gasoline Cable Pulling Winch

Gasoline Engine Gas Powered Winch , Take Up Machine Cable Pulling Winch



Technical Parameters

Item Number 08192 08193 08194
Model LJ-300B LJ-500A LJ-500B
Diameter of Drum Groove (mm) Φ300 Φ500 Φ500
Engine Type Honda GX270 gasoline engine R175A diesel engine Honda GX270 gasoline engine
Power (hp) 9 6 9
Rotational Speed (rpm) 3600 2600 3600
Traction Force (kN)
/
Pulling Speed
(m/min)
Slow 25/8.5 16/10.5 16/13.6
Medium 15/13.4 10/16.6 10/21.5
Fast 6/33.5 4/40.8 4/53.6
Reverse -/9.6 -/11.8 -/15.3
Overall Dimension (mm) 870×620×650 920×700×710 900×700×710
Weight (kg) 140 190 150
