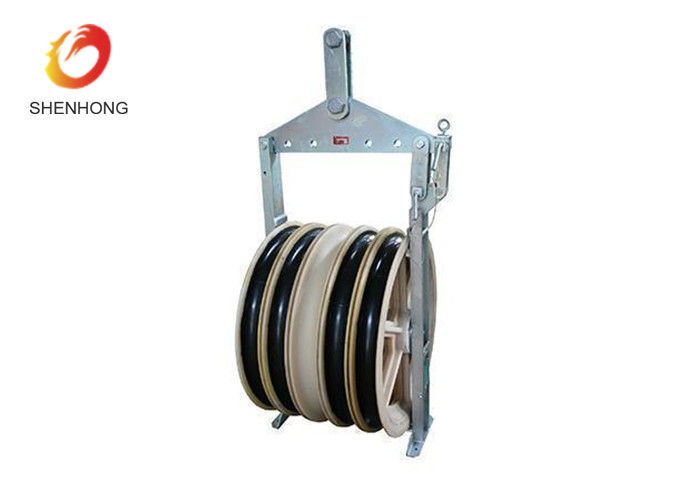

Stringing Large Diameter Rope Pulley As Tesmec 916mm Wire Stringing Blocks

Stringing Large Diameter Rope Pulley As Tesmec 916mm Wire Stringing Blocks
Stringing Large Diameter Rope Pulley As Tesmec 916mm Wire Stringing Blocks Stringing Large Diameter Rope Pulley As Tesmec 916mm Wire Stringing Blocks

Large Image :  Stringing Large Diameter Rope Pulley As Tesmec 916mm Wire Stringing Blocks Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: 916
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Nylon No. Of Sheave: 1,3,5,7,9
Application: Stringing Conductor Wheel Diameter: 916mm
Wheel Width: 110mm Type: Overhead Transmission Line Wire Rope Pulleys
High Light:

rope pulley block

,

conductor stringing blocks

Stringing Large Diameter Rope Pulley As Tesmec 916mm Wire Stringing Blocks



Our 916mm Large Diameter Stringing Block has the maximum suitable conductor LGJ720. In detail, the aluminum of this conducting wire can possess the largest cross section of up to 720 square millimeters. The dimension of block (outside diameter*root diameter*sheave width) is Φ916× Φ 800× 110 (mm).



Main Specifications

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Feature
10151 SHDN916 1 50 51 MC nylon sheave
10152 SHSQN916 3 75 120
10153 SHWQN916 5 150 200

The middle sheave can be customized as cast steel sheave



This 1040mm Large Diameter Stringing Block has the conductor diameter of no more than LGJ1120. That is to say, the aluminum of this conducting wire can possess the maximum cross section of 1120 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ1040×Φ900× 125 (mm).

Main Specifications

Item Number Model Number of Sheave Rated Load (kN) Weight (kg) Features
10165 SHDN1040 1 50 60 MC nylon sheave
10166 SHSQN1040 3 105 200 Middle: MC nylon sheave Conductor: rubber coated nylon sheave
10167 SHWQN1040 5 180 330

The rubber lined MC nylon sheave are completely lined,half lined sheave can be customized



Main Specifications

Item number Model Number of sheave Rated load (kN) Weight (kg) Feature
10168-1 SHDN1160 1 60 65 Middle :MC nylon sheave
10168-2 SHSQNK1160 3 120 220 Middle :MC nylon sheave Conductor: rubber lined MC nylon sheave

Notes:
1. Maximum suitable conductor ACSR1250
2. Dimension of block for conductor (outside diameter× root diameter × sheave width) Φ1160×Φ1000×150(mm).
3. Dimension of block for steel wire rope (outside diameter× root diameter × sheave width) Φ1160×Φ1000×130(mm).
4. The rubber lined MC nylon sheave is half lined.

Shipment
1. The machines will be shipped in container.
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.



Payment
​1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T.
3. Please send us the L/C draft to us before issue L/C.



Why choose us:
1. High quality and competitive price.
2. Leading and biggest manufacture for stringing equipment in China.
3. 25 years of production experience and more than 1000 customers in the country and abroad market. The machines have been sold to more than 20 countries.
4. Big stock condition for fast shipment.
5. Detailed pre-sales service and fast active after-sales service. Response within 12 hours after-sales service.
