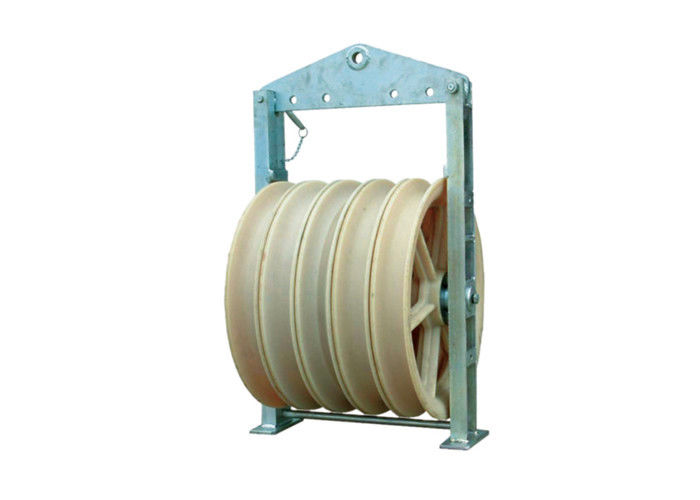

822mm Mc Wheels Cable Stringing Nylon Pulley Block

822mm Mc Wheels Cable Stringing Nylon Pulley Block
822mm Mc Wheels Cable Stringing Nylon Pulley Block 822mm Mc Wheels Cable Stringing Nylon Pulley Block

Large Image :  822mm Mc Wheels Cable Stringing Nylon Pulley Block Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: 822
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: export package
Delivery Time: 7-30 days after payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Nylon Surface: Garvanized
Application: Pull Cable Wheel Diameter: 822mm
Wheel Width: 110mm Product: Cable Stringing Nylon Pulley Block
High Light:

Stringing Nylon Pulley Block

,

822mm Nylon Pulley Block

,

Mc Wheels Pulley Block

822 mm Large diameter mc nylon wheels Cable Stringing Nylon Pulley Block



822mm Large Diameter Stringing Block

822mm Large Diameter Stringing Block possesses the dimension (outside diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum suitable conductor is ACSR630, which means that the aluminum of our conducting wire has the maximum cross section of 630 square millimeters.

The 10148 type product is designed with the assembled structure. It is really convenient to separate the conductor from middle sheave, thus helping reduce the weight during transportation. Dimension of the middle steel sheave is φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced nylon sheave coated by polyurethane.

1.Maximum suitable conductor ACSR630.

2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ822×Φ710×110

3.Rubber lined MC nylon sheave for conductor can be customized.



Technical Data

Item number Model Number of sheaves Rated load (kN) Weight (kg) Features
G1430 SHDN822 1 30 40 MC nylon sheave
G1431 SHSQN822 3 60 118
G1432 SHWQN822 5 120 180
G1433 SHQQN822 7 120 250
G1434 SHQ822 7 120 285 Middle: cast steel sheave Conductor: MC nylon sheave
G1435 SHJ822 9 150 445
G1430A SHDL822 1 30 45 Aluminum sheave
G1430B SHDLJ822 1 30 48

Rubber lined aluminium sheave

822mm Mc Wheels Cable Stringing Nylon Pulley Block 0

Services:
1. Our Quality Assurance
Before packaging, we should control the quality of each process to avoid defects in the manufacturing process.

2. Fast delivery time
There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days.

3. Packaging
Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state.

4. Application
It is widely used in overhead power line construction.
