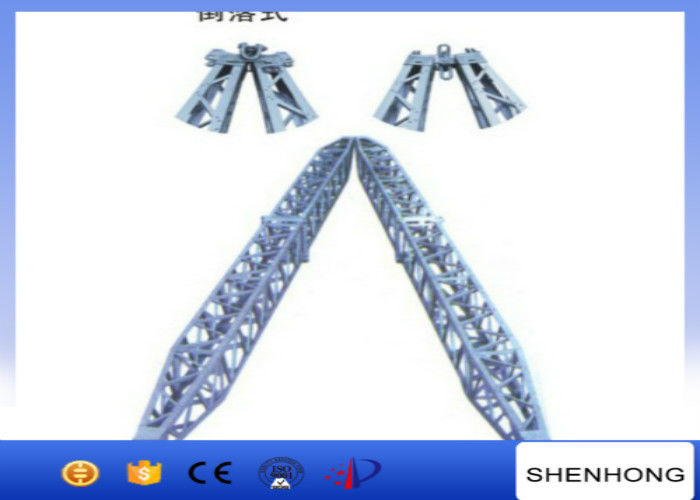

Aluminum Tower Erection Tools A Shape Lattice Gin Pole 14KN - 65KN Load

China Aluminum Tower Erection Tools A Shape Lattice Gin Pole 14KN - 65KN Load supplier
Aluminum Tower Erection Tools A Shape Lattice Gin Pole 14KN - 65KN Load supplier Aluminum Tower Erection Tools A Shape Lattice Gin Pole 14KN - 65KN Load supplier

Large Image :  Aluminum Tower Erection Tools A Shape Lattice Gin Pole 14KN - 65KN Load

Product Details:

Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: CE,BV,ISO
Model Number: LBD400

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: PV plastic
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Unit/Units per Month
Contact Now
Detailed Product Description
Application: Power Construction Function: Erect Tower
Length: 12-20m Allowable Load: 14-65KN
Weight: 14.5-16.5kg/m Cross Section: 400mm

Aluminum Tower Erection Tools A Shape Lattice Gin Pole 14KN - 65KN Load



Application

It is used to assemble and erect the tower with pulling rope in transmission and distribution construction.



Note:

Model whose postfix "A" means it is universal and "B"means strengthened.



Technical data of Tower Erection Tools aluminum A-shape lattice gin pole 14-65KN load 12-20m length

Model Length(m) Allowable load(KN) Cross section(mm) Weight(kg/m)
LBD400-12A 12 43 Φ400 14.6
LBD400-13A 13 38
LBD400-14A 14 32
LBD400-15A 15 28
LBD400-16A 16 25
LBD400-17A 17 22
LBD400-18A 18 19
LBD400-19A 19 16
LBD400-20A 20 14
LBD400-12B 12 65 16.5
LBD400-13B 13 57
LBD400-14B 14 50
LBD400-15B 15 44
LBD400-16B 16 38
LBD400-17B 17 35
LBD400-18B 18 30
LBD400-19B 19 26
LBD400-20B 20 23



Aluminum Tower Erection Tools A Shape Lattice Gin Pole 14KN - 65KN Load

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
