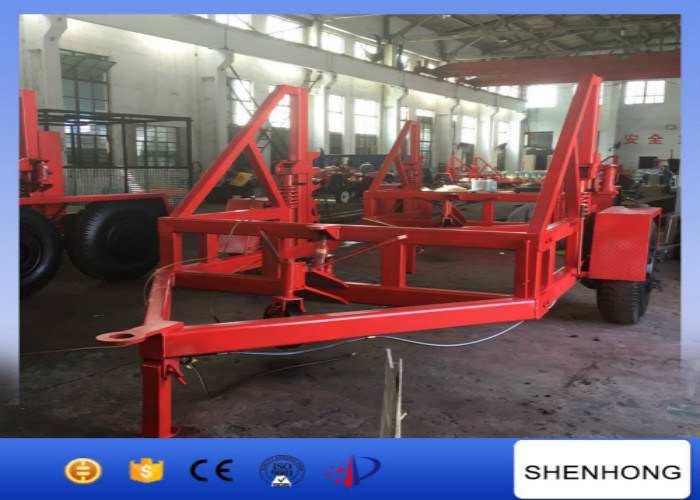

12 Ton Capacity Underground Cable Installation Tools With Hand Brake

12 Ton Capacity Underground Cable Installation Tools With Hand Brake
12 Ton Capacity Underground Cable Installation Tools With Hand Brake 12 Ton Capacity Underground Cable Installation Tools With Hand Brake

Large Image :  12 Ton Capacity Underground Cable Installation Tools With Hand Brake Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: LZ -12T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: export standard packing
Delivery Time: 15-20 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets per month
Detailed Product Description
Product Name: 12 Ton Capacity Cable Drum Trailer Load Capacity: 12T
Type: Cable Reel Trailer Application: Cable Drum Hauling And Cable Pulling-pushing
Usage: Transport Cable Drums Item: Cable Carriage Vehicle
High Light:

cable installation tools

,

wire installation tools

,

12T Capacity Underground Cable Installation Tools

12 Ton Capacity Underground Cable Installation Tools With Hand Brake



Application

This product is used for cable drum hauling and cable pulling-pushing.The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.



Technical Data

Model Max Load Weight Max Lifting Height Inside Wide length Wide High
(T) (kg) mm mm (mm) (mm) (mm)
LZ-3T 3 600 1550 1400 3700 2200 1800
LZ -5T 5 900 1750 1650 4000 2700 2180
LZ -8T 8 1200 1900 1950 4200 3200 2300
LZ -10T 10 1500 2000 2000 4300 3400 2400
LZ -12T 12 2600 2000 2000 4300 3400 2400



We can make products with special specification as your requirements.
