Product Details:
Payment & Shipping Terms:
|
| Working Load: | 2T | Standard Lift: | 1.5m |
|---|---|---|---|
| Running Test Load: | 3T | Diameter Of Load Chain: | 8mm |
| Net Weight: | 12kg | Item: | Lever Chain Block |
| High Light: | wire rope tensioner tool,wire pulling tools,2T Manual Lever Pulley Hoist Block |
||

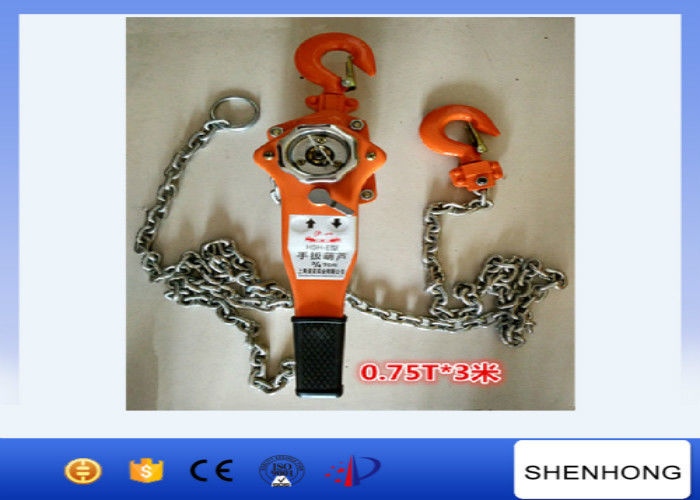

Introduction
1. Chain guides provide smooth chain operation
2. Roller bearing supported load sheaves for avoiding abrasion
3. Chain are made of special alloy steel that is exclusively
4. Drop forged kooks to ensure superior quallity and safety
The lever hoist static test is 4 times of capacity,and running test is 1.5 times of capacit one by one
Lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance , which is capable of being applied in electricity,mines ,ship buildings, construction sites, transports,postage and telecommunication for installing equipment,lifting goods,pulling mechanical parts,bulk strapping and fastening,tightening fitting of wires ,assembling and welding etc, It has exceptional asvantages particularly for pulling in every limited narrow places, in the upper air high above the ground and at any angles.
Application
Chain Block Pulley is for the lifting of objects and mechanical traction, tightening steel wire, aluminum wire .
Features
It is widely used in shipbuilding, electric power, transportation, construction, mining, telecommunications and other sectors of the equipment installation, lifting, pulling. Hand hoist is safe, reliable, durable, good performance, easy to repair, small volume, light weight, convenient to carry, not much manual force and high efficiency, the perfect structure and beautiful appearance. Hand chain hoist and hoist are called manual hoist. It is used to lift weights by human, and it must not be extended operating handle.In the operating process, the rest handle should be free follow-up but not be blocked. Please select appropriate ton hoist according to the load.
Used to tighten the wire, lifting equipment and it is suitable for high altitude operation.
Brake device adopts double pawl, so it is durable, safe and reliable.
The handle design of bi-directional ratchet, the handle can be reciprocating operation during up and down.
Design of brake and clutch device, when there’s no load, the position will be in the middle.
Can be hand chain and it can improve the work efficiency.
Data Sheet
| Model | VA0.25 | VA0.5 | VA0.75 | VA1 | VA1.5 | VA2 | VA3 | VA6 |
| Capacity t | 0.25 | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 |
| Standard Lift m | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Running test load t | 0.375 | 0.75 | 1.13 | 1.5 | 2.25 | 3 | 4.5 | 9 |
| Min distance between hooks | 325 | 335 | 380 | 380 | 480 | 620 | ||
| Effort required to lift max load N | 140 | 140 | 220 | 220 | 320 | 3404 | ||
| Diameter of load chain mm | 4 | 5 | 6 | 6 | 8 | 8 | 10 | 10 |
| Net weight kg | 7 | 7.5 | 11 | 12 | 21 | 31 | ||
| Extra weight per meter of extra lift cm | 0.92 | 0.92 | 1.6 | 1.6 | 2.4 | 4.8 |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
