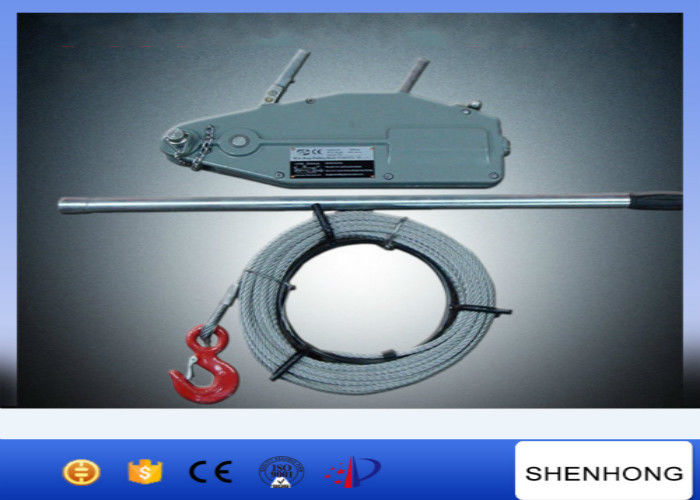

Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch

Good quality Overhead Line Construction Tools for sales
Good quality Overhead Line Construction Tools for sales
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

I'm Online Chat Now

Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch

China Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch supplier
Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch supplier Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch supplier

Large Image :  Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO,CE
Model Number: VIT-3200

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: Plywood case
Delivery Time: 15 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Product Name: Cable Pulling Tools 3.2T Wire Rope Pulling Hoist With 20M Rope Load Capacity: 3.2T
Wire Rope: 20M Item: Tirfor Hoist
Shell: Aluminum Lift Speed: Manual

Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch ​





Specificaiton

1. Measures small and light.

2. Equipped with two safty devices

3. Most rationally peaneed, designed and duarble



Features
1. Measures small and light.
2. Equipped with two safty devices, and this guarantees safe operations.
3. Wire rope is drawn out straight, by distant operations regardless of wire lengths.
4. Transmission at a sppeed of 3 meters per minute, and this is the fasteset speed among all hand-driven handling devices.
5. Wire rope can be used at any working temperature degrees.
6. Equipped with a saftey hook, preventing wire rope from coming off while operation.
7. Most rationally peaneed, designed and duarble.



Data Sheet

Item No VIT-800 VIT-1600 VIT-3200 VIT-5400
Lifting Capacity (kg) 800 1600 3200 5400
Pulling Capacity (kg) 1300 2800 6000 10125
Tested to (kg) 1500 3000 6000 10125
Steel wire rope dia. (mm) IWRC 8.3 IWRC 11 IWRC 16 IWRC 20
Wire rope safety factory load caoacity (mm) 5×WLL 5×WLL 5×WLL 5×WLL
Breaking strength of wire Rpoe (kg) 5430 9680 17200 27000
Net weight (without wire Rope) (kg) 6.4 12 23 28



Wire Rope Pulling Hoist Cable Pulling Tools 20M Rope Tirfor Hand Winch

Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
