ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load

I'm Online Chat Now
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

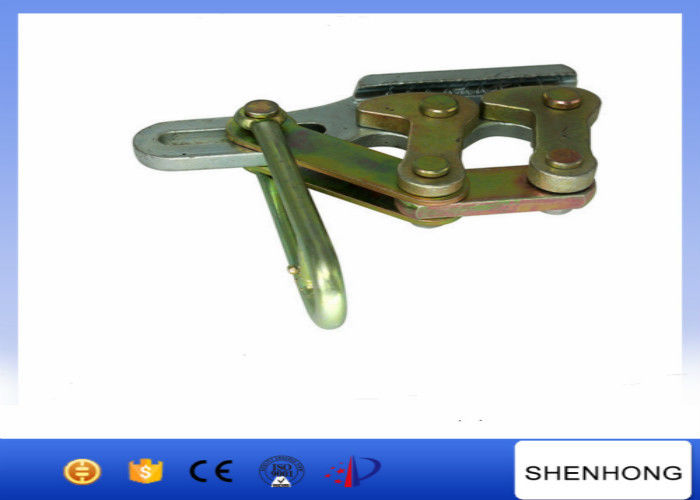

ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load

ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load
ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load

Large Image :  ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: SKDS-3
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Load(KN): 30 Weight(kg): 4.1
Suitable Conductor: 70-120mm2 Type: Double Cam Clamp
Uses: For Sagging Of Earthwires And Adjusting Of Guys Warranty: 1 Year
High Light:

wire rope grips

,

come along clamp

ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load​





Quick details:
1. Transmission Line Stringing Equipment Accessories & Tools
2. Self Gripping Clamps
3. Rated Load: 30kN
4. Conductor size: 70~120mm2
5. Max. Opening: 15mm
6. Weight: 3.1kgs
7. Ground Cable


Description:
The self gripping clamps can be use to anchor and to string conductor (aluminum, ACSR, copper...) and steel rope. The body is made of high strength hot forged steel or Aluminum, in order to minimize the ratio between weight and working load.

Specification:

Model Conductor size (mm2) Rated load (kN) Max. opening (mm) Weight (kg)
SKDS-1 25~50 10 11 2.6
SKDS-2 50~70 20 13 3.1
SKDS-3 70~120 30 15 4.1



ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load 0

The after-sale service is an important part of our marketing and sales work. The quality of service provided will not only influence the company credit, but also closely relate to the safely running of the equipment. In order to maintain the good reputation of BOYU, we will strictly observe relevant national regulations about Product-Quality Law and provide high quality products with the principle of hospitable reception, enthusiastic service, quick response and prompt resolution. We will conscientiously implement the after-sale service work in full-scale, and make commitment to our clients.
ISO Approval Self Gripping Clamp / Double Cam Clamp 30KN Rated load 1


1. On behalf of the consumer installation, commissioning products;

2. According to consumer requirements, technical guidance on the use of other aspects;

3. To ensure the supply of maintenance spare parts;

4. Responsible for the maintenance services, and provide regular maintenance, periodic maintenance;

5. To provide consumers with regular telephone interviews;

6. The handling of consumer complaints letters and visits and telephone advice, answer consumer advice.

While a variety of ways to collect consumer opinions on the quality of products, and timely improvements under the circumstances.

Factory sales directly, we are dedicated to provide you with high quality products, excellent service and competitive price.
We sincerely hope to establish a long-term relations cooperation with you.
Your success is our success.
