Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw

I'm Online Chat Now
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw

Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw
Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw

Large Image :  Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: -
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Load(KN): 30 Weight(kg): 2.52
Max Gap(mm): 32 Uses: 3T Wire Rope Grip Cable Grip
Product Name: 3T Steel Wire Rope Grip For 16-32 Mm Rope Material: Alloy Steel
High Light:

wire grip clamp

,

wire rope grips

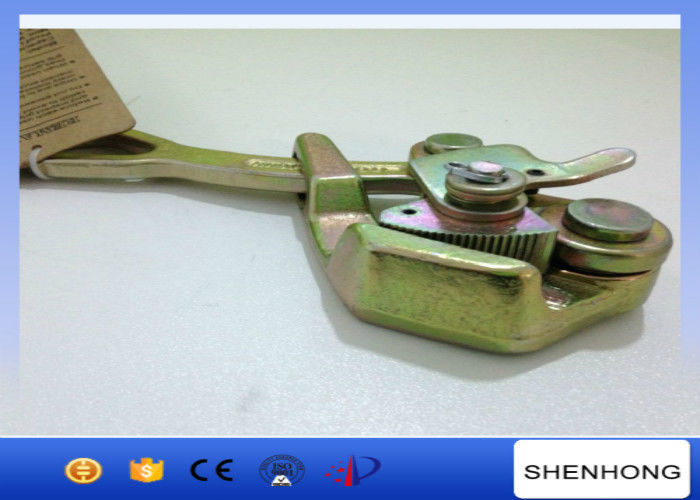

Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw



3T Steel Wire Rope Grip For 16-32 mm Rope is ideal device for gripping, Pulling and tensioning of messenger wire ropes,cables and metal rods, depending in the diameter and surface up to a tensile strength of 1.770N/mm2

The parallel jaws give a firm non – slip grip, not damaging the wire.Guide prevents the grip from dropping off the wire and affords instant release.Tight wire – gripping for Ratchet Puller (Pulley Tackle)More built – in safety factors than other brandsEasily field repairable and inexpensive to maintainSolid ductile and malleable iron construction.Loading capacity from 500kgs to 3,000kgs



Features

1. Match with delicate smooth clamp mouth, minimal harm to wires.
2. Made by high tensile forged carbon steel.
3. Half-moon shape clamping jaw is suitable for pulling steel strand and steel wire.
4. Planar shape clamping jaw is suitable for pulling electric cable, will not damage the cable’s surface.
5. Clamp mouth with insurance device, will not jump wire.
6. After special heat treatment, the product has strong tension stress, high meshing degree and not easy slip or distort.
7. Material: High Tensile Carbon Steel
8. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
9. Finish: color zinc plated



Technical Data

Item No S.W.L Conductor dia



Recommen ded

N.W
S-0500 0.5ton 1-10mm 0.25kg
S-1000 1.0ton 5-20mm 0.85kg
S-2000 2.0ton 7-20mm 1.20kg
S-3000 3.0ton 16-32mm 2.520kg



Alloy Steel Cable Pulling Clamp 3T Half - Moon Shape Clamping Jaw 0
