11-15 MM OPGW Installation Tools Bolted Type OPGW Cable Grip

China 11-15 MM OPGW Installation Tools Bolted Type OPGW Cable Grip supplier
11-15 MM OPGW Installation Tools Bolted Type OPGW Cable Grip supplier 11-15 MM OPGW Installation Tools Bolted Type OPGW Cable Grip supplier

Large Image :  11-15 MM OPGW Installation Tools Bolted Type OPGW Cable Grip

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: 0124

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: carton
Delivery Time: 10 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Rated Load: 16KN Suitable OPGW: 11-15mm
Weight: 5.6kg Material: Aluminum
Item: Bolted Type OPGW Cable Grip Application: OPGW Overhead Line Construction

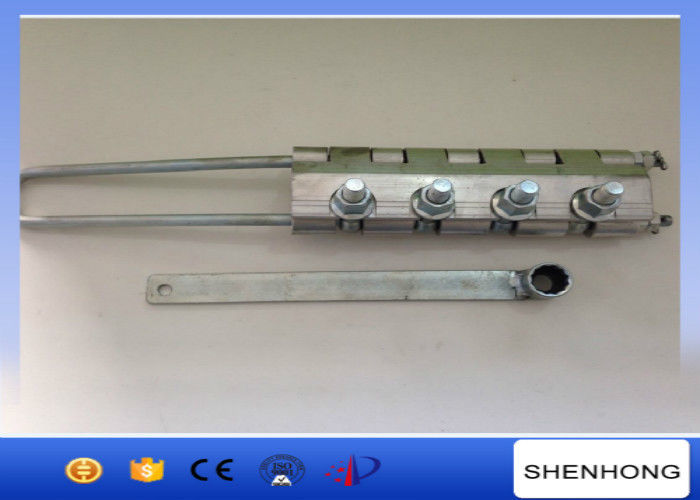

11-15 MM OPGW Installation Tools Bolted Type OPGW Cable Grip ​



1. Description:This radial locking gripper is always found in the construction of OPGW. OPGW means the optical power ground wire. Our product adopts aluminum alloy material as its main body, which can effectively protect the OPGW. The diameter of OPGW had better be clearly indicated while an order is placed for the 20101 type product.



2. Uses: Apply to OPGW construction.



3. Features: The main body is made of aluminum alloy and it can protect the OPGW effectively.



4. Specification: OPGW diameter is need to indicated when customer place order



5. Characteristic

They are for holding the OPGW overhead optical ground wire, cable diameter is the same as grip size,

in order to ensure clamping firmly, reduce the pressure of clamped parts cable is clamped part

and protect the inside fiber of cable not to be damaged.



The body is forging of high strength aluminum alloy, using the bolt not to slip line and hurt the line.

Need to specify when ordering diameter and fiber cable models.



6. Date Sheet

Item No.
Cable Diameter
(MM).
Rated Load
(KN)
Unit Weight
(KG)
0123
8~20
25
3.8
0124
11~15
16
5.6
0125
15~17
16
5.6



11-15 MM OPGW Installation Tools Bolted Type OPGW Cable Grip



Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
