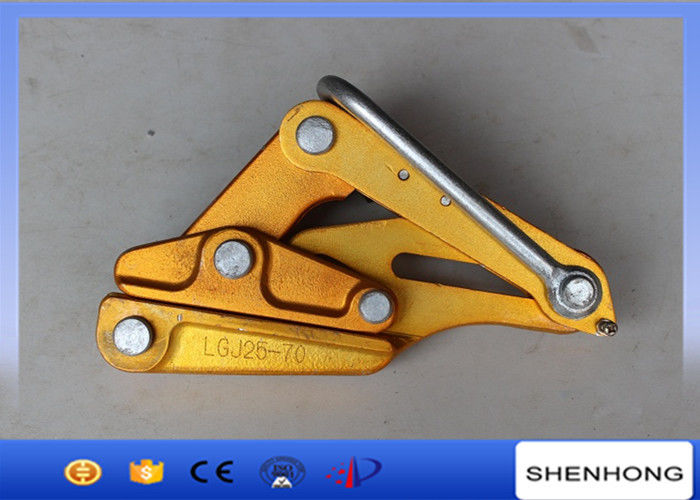

High Strength Aluminum Alloy Wire Rope Clips Stringing Bare Overhead Line Conductors

High Strength Aluminum Alloy Wire Rope Clips Stringing Bare Overhead Line Conductors
High Strength Aluminum Alloy Wire Rope Clips Stringing Bare Overhead Line Conductors High Strength Aluminum Alloy Wire Rope Clips Stringing Bare Overhead Line Conductors

Large Image :  High Strength Aluminum Alloy Wire Rope Clips Stringing Bare Overhead Line Conductors Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: JDKL
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month
Detailed Product Description
Rated Load(KN): 10-40 Weight(kg): 1.7-3.2
Characteristic: High Strength Usage: Tightening Conductors
Application: Power Construction Type: Wire Rope Clip
High Light:

wire rope grips

,

come along clamp

High Strength Aluminum Alloy Wire Rope Clips Stringing Bare Overhead Line Conductors​





Cable Grip Introduction

Come-along clamps are used for tensioning and stringing bare overhead line conductors. They are an indispensable tool for every lineman. All parts are pivot fastened. Because of its spring action, the come-along clamp locks on to the conductor even without tensile load. The different conductor materials require clamping jaws with corresponding conductor grooves.

While the cable grips used in the original cable railways were manually operated, requiring considerable skill and strength, modern cable grips tend to be automatic. Given that the cable runs at a relatively constant speed, accelerating the vehicle to match the speed of the cable presents a technical difficulty; possible methods are to apply the grip gradually, to accelerate the vehicle (e.g. by guiding wheels) prior to applying the grip, or to use a sprung linkage between the grip and the vehicle. Also, the cable needs to be able to handle friction from the grip and increased load while the vehicle is accelerating.



Technical Data

Model Type Rated Load(KN) Applicable Range(mm2) Weight(kg)
JDKL-1 10 25-70 1.7
JDKL-2 20 95-120 2.5
JDKL-3 30 150-240 2.8
JDKL-4 40 300-400 3.2



Features

1. Match with delicate smooth clamp mouth, minimal harm to wires.
2. Made by high tensile forged carbon steel.
3. Half-moon shape clamping jaw is suitable for pulling steel strand and steel wire.
4. Planar shape clamping jaw is suitable for pulling electric cable, will not damage the cable’s surface.
5. Clamp mouth with insurance device, will not jump wire.
6. After special heat treatment, the product has strong tension stress, high meshing degree and not easy slip or distort.
7. Material: High Tensile Carbon Steel
8. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
9. Finish: color zinc plated
