Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector

I'm Online Chat Now
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

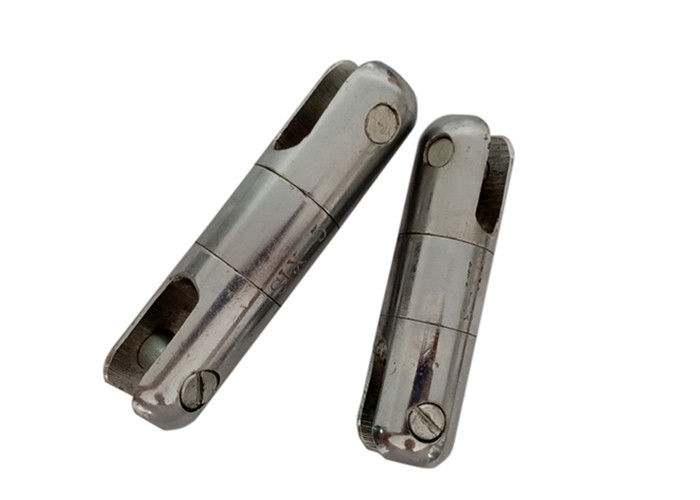

Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector

Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector
Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector

Large Image :  Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector Get Best Price

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: SLX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD10-300/pc
Packaging Details: carton
Delivery Time: 10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pc/day
Detailed Product Description
Rated Load: 5-250KN Weight: 0.2-8kg
Surface Treatment: Polishing Material: Alloy Steel
Usage: Release Wire Rope Twisting Pins: 16p
High Light:

Cable Pulling Swivel Joint Connector

,

250KN Swivel Joint Connector

,

16 Pins Rotating Swivel Joint

10kN to 250kN Swivel Joint Connector Cable Pulling Swivel Rotating Swivel Joint



Application:

Cable Pulling Swivel connector is suitable for connecting traction wire rope when laying out wire of various specifications, which can release the twisting strength of wire rope.



Functional performance:

Swivel connector is a special connecting tool for overhead transmission line stringing construction. It is used to connect traction rope and ground wire, main traction rope and guide rope in the traction and laying process, or the new coil head and the old coil tail when the conductor is changed, and eliminate the torque. The swivel connector can be directly connected with the traction rope and the grounding wire, or through the traction plate. The swivel connector can rotate freely in the positive and negative directions under the load-bearing state, which has the characteristics of small volume, light weight, light height, convenient assembly and disassembly, and can reduce the damage of traction rope and ground wire.



Technical principle:

The swivel connector is connected to the tool cable buckle or traction plate through the pin shaft and pin sleeve at both ends and bears the tension. The internal structure adopts plane thrust ball bearing to bear the axial load at both ends, and two radial ball bearings are equipped to guide to bear the radial load imposed by the pulley groove of paying off pulley. Under the joint action of two kinds of bearings, the rotary connector can rotate freely under rated load and release torque.



Structure composition:

The swivel connector is made of heat-treated alloy structural steel, and the surface is chrome plated for corrosion protection. The rotary connector is mainly composed of bearing pin shaft, pin shaft sleeve, rotary shaft joint, bearing seat rotary joint and other parts.



Points for attention:

1. Overload is prohibited.

2. It is forbidden to enter the traction machine drum and winch drum.

3. Before use, check and confirm that all parts are in good condition.

4. After connection, it shall be able to swing flexibly without the display card group.

5. The pin shaft shall be tightened, and the pin shaft sleeve must be installed when it is connected with the cable buckle of the traction rope inserting plate and the ring sleeve of the mesh sleeve connector.

6. The swivel connector shall be maintained regularly to keep good lubrication.

7. Avoid mixing with corrosive articles and corrosion.

Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector 0


Data Sheet

Model Rated load Main dimensions(mm) Weight(kg)
A B C D E
SLX-0.5 5kN 19 61 40 8 9 0.2
SLX-1 10kN 30 100 70 12 13 0.4
SLX-2 20kN 35 120 90 14 14 0.55
SLX-3 30kN 37 129 95 16 16 0.65
SLX-5 50kN 42 154 116 18 17 1.5
SLX-8 80kN 57 220 165 24 22 2.4
SLX-13 130kN 62 248 192 26 24 3.5
SLX-18 180kN 75 294 222 26 26 7.2
SLX-25 250kN 80 323 243 30 30 8
Polished 16 Pins 250KN Cable Pulling Swivel Joint Connector 1
