|Package:||Steel Case||Crimping Type:||Hexagon Crimping|
|Product:||Hydraulic Compressor||Warranty:||1 Year|

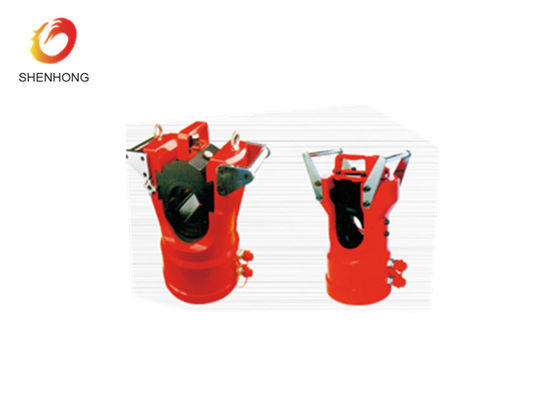

125T Hydraulic Wire Crimping Tool Compressor For Cable Lug Of Power Line
1. The utility model relates to a gas-liquid separation type double-acting hydraulic compressor, which comprises a main engine system, a power system, a cooling system, a process gas system and a control system.
2. The cylinder has a piston and four cavities distributed from top to bottom: the power system consists of a storage device, a filter, an oil pump, a relief valve and an oil pool, and an oil pump and a flow valve and a pool.
3. One end of the oil pump is connected with the oil pool after parallel with the relief valve, the other end is connected with the filter and the energy storage device in turn;
4. The cooling system includes a cooler and an oil cooler, and the process of air system includes a relief valve, a second ball valve, a one-way valve and a pipeline, which are connected in turn.
5. A and B cavities are medium cavities, C and D cavities are oil cavities. The utility model has the a
dvantages of low noise, low cost, wide suction and discharge pressure, high efficiency and energy saving, and the air and hydraulic oil will not penetrate each other, which is especially suitable for compression of medium high pressure of pneumatic or liquid with high suction pressure.
