SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake

China SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake supplier
SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake supplier SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake supplier

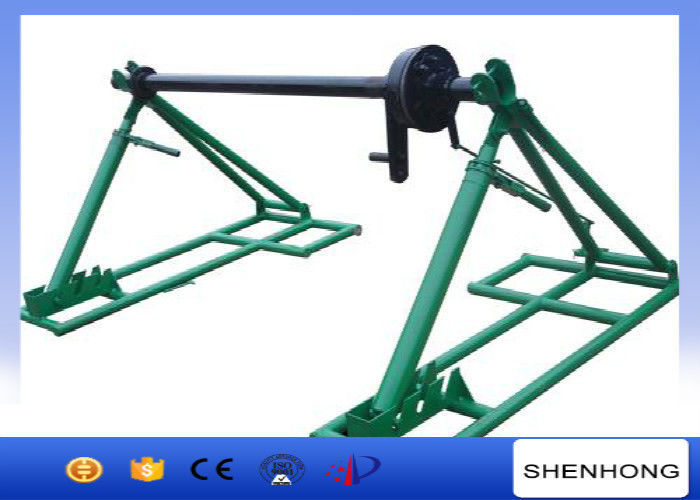

Large Image :  SIPZ Series Integrated Cable Drum Jacks With Disc Tension Brake

Product Details:

Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: BV,CE,ISO
Model Number: SIPZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood case
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Contact Now
Detailed Product Description
Application: Construction Diameter Of Coil: 900-2500mm
Max Width Of Coil: 1350-1700mm Maximum Weight: 3000-7000kg
Brake Torque: 1000-2000N.m Linespeed: 80m/min
Weight: 200-480kg Used: Spport Reel

SIPZ series integrated cable reel drum stand with disc tension brake



Application

It is used to support reel in tension releasing wire or mechanically linepulling wire or machanically linepulling wire and to brake the reel. It is convenient transportation because it can be disassembled into 3 pieces.



Notes

SIPZ-7 is double disc brake.



Technical data of SIPZ series integrated cable reel drum stand with disc tension brake

Model SIPZ3A SIPZ5A SIPZ-7
Applicable reel Diameter of coil(mm) Φ900-1600 Φ1600-2400 Φ1800-2500
Width of coil(mm) ≤1350 ≤1350 ≤1700
Diameter of axle hole(mm) Φ65-100 Φ65-100 Φ120
Maximum weight(kg) 3000 5000 7000
Brake torque(N.m) 1000 1000 2000
Linespeed(m/min) 80 80 80
Weight(kg) 200 215 480



Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
