Product Details:
Payment & Shipping Terms:
|
| Product: | Double Braided Rope | Diameter: | 20mm |
|---|---|---|---|
| Breaking Force: | 8200kg | Material: | Nylon |
| Application: | Tower Erection | Packing Way: | Coil,reels,hanks,bundles |
| High Light: | overhead line stringing equipment,transmission line stringing tools |
||

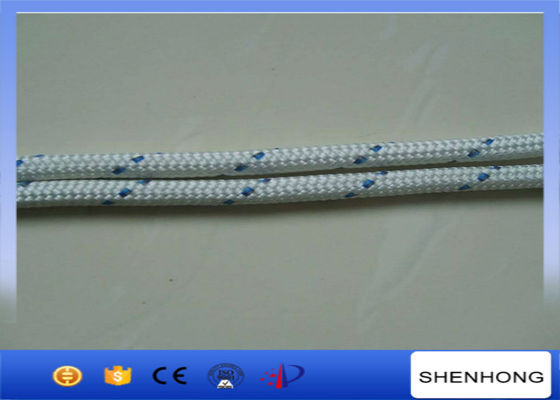

Nylon OPGW Hotline Installation Cable Pulling Rope 20mm Diameter Double Braided
Introduction
The double layer braided nylon rope is used for pulling OPGW under hotline condition. It is specially braided from polyamaid fiber with double layer.
The rope is insulated with high strength pulling force, low elongation, light weight and wear-proof in the line stringing operation.
Product Description
1. Material: nylon66
2. Diameter: 9.8mm-14mm
3. Length can be customized
4. Any color
5. Package:bundle,coil,reel,or as request
6. Features:
(1) Easy to handle, smooth on hands
(2) Stays flexibility throughout its life
(3) Specifically designed to provide excellent strength and shock absorbing
(4) Offers predictable and controlled elongation, stretch less
(5) UV-ray, oil, mildew, abrasion and rot resistant
(6) Water repellent and dry quickly, color retention
Date Sheet
| Diameter(mm) | Diameter(Inch) | Weight(kg/220M) | Breaking strength | |
| Polyester | Nylon | |||
| 4 | 5/32 | 2.21 | 290kg | 320kg |
| 5 | 3/16 | 3.45 | 400kg | 500kg |
| 6 | 7/32 | 4.96 | 550kg | 750kg |
| 7 | 1/4 | 6.75 | 760kg | 1000kg |
| 8 | 5/16 | 8.82 | 1000kg | 1300kg |
| 9 | 11/32 | 11.16 | 1200kg | 1700kg |
| 10 | 3/8 | 13.78 | 1600kg | 2000kg |
| 12 | 1/2 | 19.85 | 2300kg | 3000kg |
| 14 | 9/16 | 27.01 | 3100kg | 4000kg |
| 16 | 5/8 | 35.28 | 4100kg | 5300kg |
| 18 | 3/4 | 44.66 | 5000kg | 6700kg |
| 20 | 13/16 | 55.13 | 6300kg | 8200kg |
Why choose us?
1. Rich production experiences, well-equipped facilities and talented engineers
2. 100% manufacturer:
Small MOQ,
Good price,
Fast delivery,
High quality,
Good services.
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
