Overhead Lines Tower Erection Tools Pilot Nylon Double Braid Rope 20mm Diameter 75KN Breaking Load

China Overhead Lines Tower Erection Tools Pilot Nylon Double Braid Rope 20mm Diameter 75KN Breaking Load supplier
Overhead Lines Tower Erection Tools Pilot Nylon Double Braid Rope 20mm Diameter 75KN Breaking Load supplier Overhead Lines Tower Erection Tools Pilot Nylon Double Braid Rope 20mm Diameter 75KN Breaking Load supplier

Large Image :  Overhead Lines Tower Erection Tools Pilot Nylon Double Braid Rope 20mm Diameter 75KN Breaking Load

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: -

Payment & Shipping Terms:

Minimum Order Quantity: 200M
Price: negotiation
Packaging Details: Coil,reels,hanks,bundles
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000M/week
Contact Now
Detailed Product Description
Product: Double Braided Rope Diameter: 20mm
Breaking Force: 75KN Material: Nylon
Application: Tower Erection Packing Way: Coil,reels,hanks,bundles

Overhead Lines Tower Erection Tools Pilot Nylon Double Braid Rope 20mm Diameter 75KN Breaking Load​





The nylon rope is specially braided from double layer high strength polyamide fiber, anti twisting and light weight. It is used as pilot rope or pulling rope in overhead transmission line stringing operation, it also can be used for hot line working.

The rope is double layer braided with spliced eye on both ends. The rope also can be colored in different colors for hot line working.



Data Sheet

Item No. Nominal diameter Breaking Load (KN) Elongation with 30% Breaking load Net Weight (kg/1000m)
6381A 6 MM 7.5 7.5% 28
6382A 8 MM 12 7.5% 44
6383A 10 MM 20 7.5% 64
6384A 12 MM 30 7.5% 92
6385A 14 MM 42 7.5% 116
6386A 16 MM 50 7.5% 160
6387A 18 MM 64 7.5% 194
6388A 20 MM 75 7.5% 222

Shipment

1. The nylon rope can be shipped by air or by sea

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.



Package

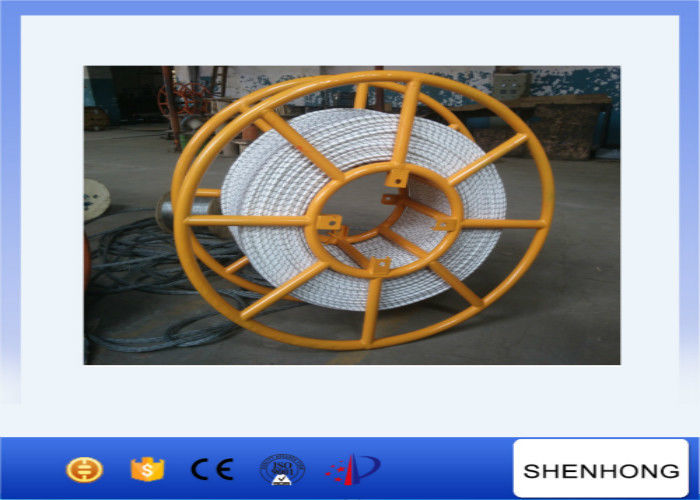

1. The nylon rope will be packed in steel drum or packed in plastic bag.

2. The steel drum can be installed in the reel winder of puller directly.

3. Customer can also order special size of steel drum according to their requirement.



Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
