| Product Name: | Different Types Cable Drum Jacks Supporting Cable Reel When Laying Guiding Cable | Rated Load: | 3T-20T |
|---|---|---|---|
| Type: | Cable Drum Jacks | Application: | Supporting Cable Reel When Laying Guiding Cable |
| Item: | Cable Reel Jack | Usage: | Cable Reel Stringing |
| High Light: | cable jack stands,cable reel jacks |
||

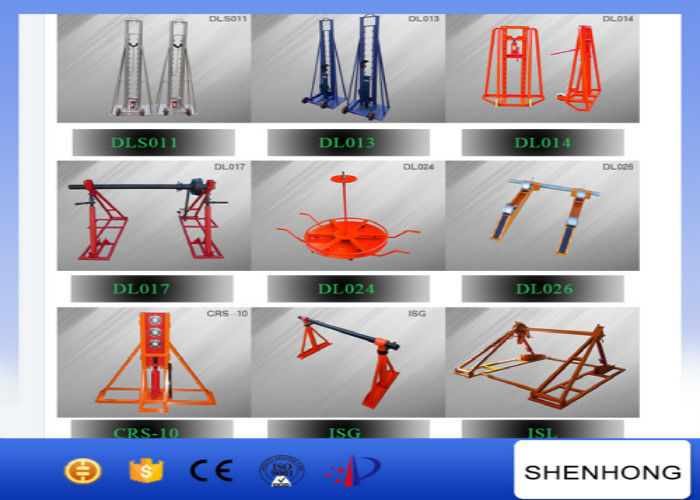

Manual Drive Cable Drum Jacks 3T - 20T Supporting Cable Reel Stringing
Application
1. Applied in the supporting of cable drum when laying cable.
2. Manual-drive and mechanical jacking equipment saves time and labor a lot.
3. With trapezoidal structure, it can be applied in different kinds of reel specification.
4. Trundles installed on the bottom make it easy to move.
Features
1. Safe and efficient one-man operation
2. Compact, lightweight and portable
3. Easy to assemble and operate
4. Simple to dismantle for transportation
Data Sheet
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| DL013-3 | 3T | φ700mm-φ2100mm | ≤1500mm | φ60mm | 96kg |
| DL013-5 | 5T | φ700mm-φ2400mm | ≤1700mm | φ76mm | 137kg |
| DL013-10 | 10T | φ700mm-φ3200mm | ≤1800mm | φ120mm |
219kg |
Product No.: DL018 Product name: Mechanical cable drum jack
Application: applied in the supporting of reel when laying guiding cable during line construction.
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| DL018-1 | 1T | φ1160mm-φ1700m | ≤1000mm | φ60mm | 30kg |
| DL018-3 | 3T | φ1400mm-φ2100mm | ≤1400mm | φ76mm | 40kg |
| DL018-5 | 5T | φ1600mm-φ2400mm | ≤1600mm | φ76mm | 40kg |
Product No.: DL019 Product name: Mechanical cable drum jack
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| DL019-3 | 3T | φ900mm-φ1800mm | ≤1400mm | φ76mm | 60kg |
| DL019-5 | 5T | φ1300mm-φ2600mm | ≤1600mm | φ76mm | 85kg |
Product No.: DL020 Product name: Mechanical cable drum jack
Application: applied in the supporting of reel when laying guiding cable during line construction.
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| DL020-1 | 1T | φ700mm-φ1150m | ≤1000mm | φ60mm | 30kg |
| D020-3 | 3T | φ1300mm-φ2100mm | ≤1400mm | φ76mm | 40kg |
| DL020-5 | 5T | φ1500mm-φ2300mm | ≤1600mm | φ76mm | 50kg |
Product No.: DL022 Product name: Mechanical cable drum jack
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| DL022-3 | 3T | φ700mm-φ2000mm | ≤1400mm | φ60mm | 50kg |
| DL022-5 | 5T | φ700mm-φ2400mm | ≤1600mm | φ76mm | 75kg |
Product No.: DL023 Product name: Mechanical cable drum jack
Application: applied in the supporting of reel when laying guiding cable during line construction.
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| DL023-1 | 1T | φ700mm-φ1150m | ≤1000mm | φ60mm | 35kg |
| D023-3 | 3T | φ1300mm-φ2100mm | ≤1400mm | φ76mm | 43kg |
| DL023-5 | 5T | φ1500mm-φ2300mm | ≤1600mm | φ76mm | 57kg |
Product No.: DL024 Product name: Mechanical cable drum jack
Application: applied in the supporting of reel when laying guiding cable during line construction.
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| DL024-1 | 1T | φ700mm-φ1150m | ≤1000mm | φ60mm | 40kg |
| D024-3 | 3T | φ1300mm-φ2100mm | ≤1400mm | φ76mm | 50kg |
| DL024-5 | 5T | φ1500mm-φ2300mm | ≤1600mm | φ76mm | 65kg |
Product No.: ISG Product name: Mechanical cable drum jack
Application: applied in the supporting of reel when laying guiding cable during line construction.
| Product No. | Rated load | Applicable drum diameter | Applicable drum width | Axle bar diameter | Dead weight |
| ISG-2000 | 2T | φ900mm-φ1300m | ≤1300mm | φ40mm | 35.5kg |
| ISG-3000 | 3T | φ13400mm-φ1840mm | ≤1500mm | φ50mm | 59kg |
| ISG-5000 | 5T | φ1600mm-φ2000mm | ≤1800mm | φ70mm | 95kg |
